[GB] คีย์บอร์ด Baionlenja Ophanim

สินค้าชิ้นนี้เป็นสินค้า GB เปิด GB ตั้งแต่วันที่ 8 มิถุนายน - 10 กรกฎาคม 2569 กำหนดส่งสินค้าช่วง Q1 ปี 2570

Case Specifications

Materials: 6063 Aluminum, Brass, Stainless Steel
Layout: WK or WKL 65%
Typing Angle: 7 Degrees
EKH: 22.3mm
Weight: 1.2kg unbuilt
Mounting: Dampened Top or PCB Gasket

PCB Specifications

Material: Black FR4
Thickness: 1.6mm
Connectivity: Onboard USB-C
Customizability: VIA
Type: Solderable and Hotswap

Kit Contents

1x Top Case
1x Bottom Case
1x Weight
1x Choice of Plate
1x Choice of PCB
10x PCB gaskets
10x Plate Gaskets
1x Carrying Case
1x Microfiber Cloth
Other necessary hardware
*ไม่มี Stabilizer สวิตช์และคีย์แคป

PCB Compatiblity

Hotswap and Solder

Mounting Design

Ophanim has two mounting options with multiple options of how to build it.

Option 1: PCB Gasket Mount - It can be built with or without the plate and uses molded gaskets to isolate the PCB from the top and bottom case

Option 2: Dampened Top Mount - Two plate designs to accomodate for softer materials. Gaskets can be removed when using plate with PCB gasket mounting to prevent rattle between plate and top case.

Soft material plate

Stiff material plate

Colorways:

	Top Case	Bottom Case	Weight

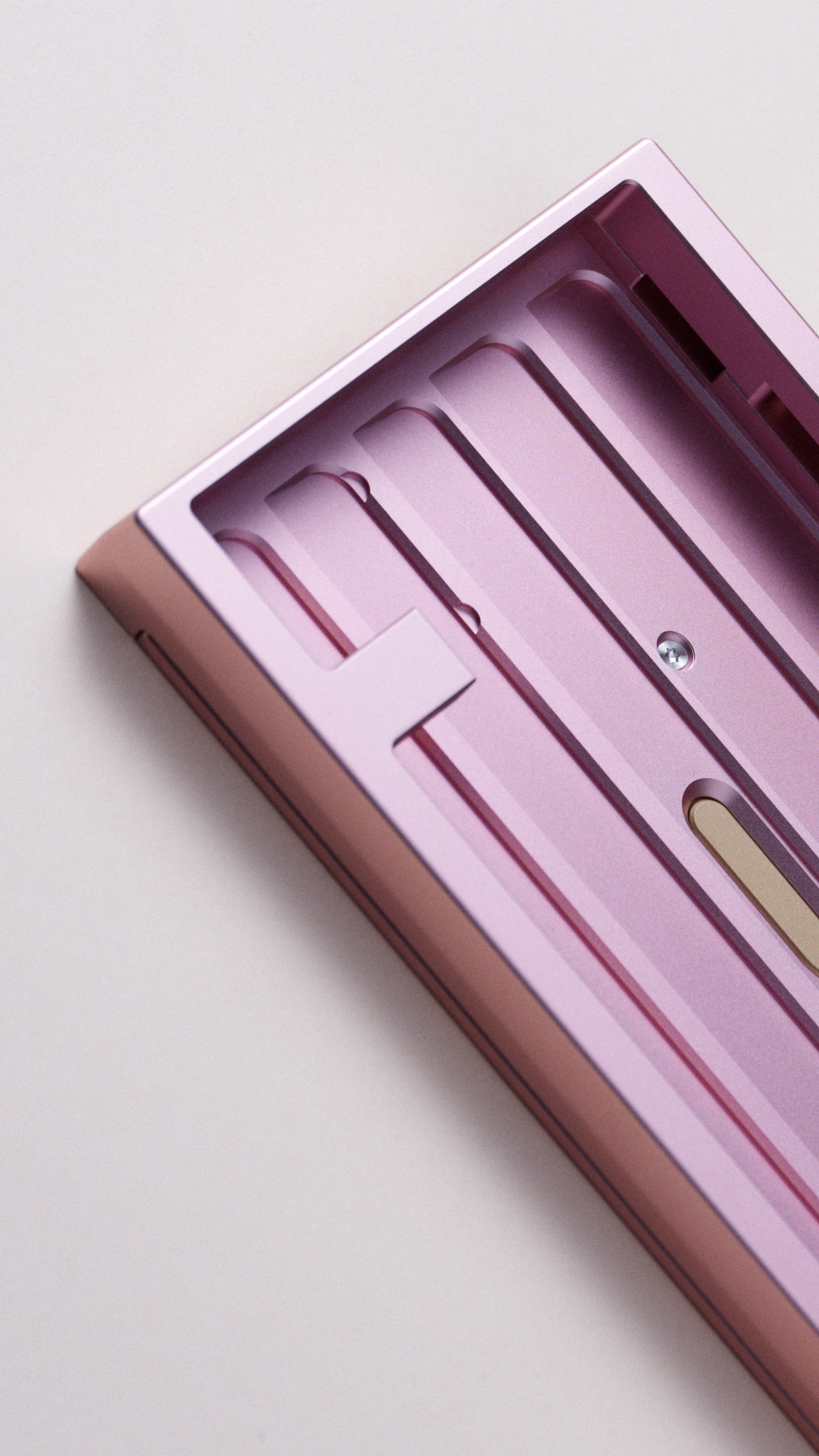

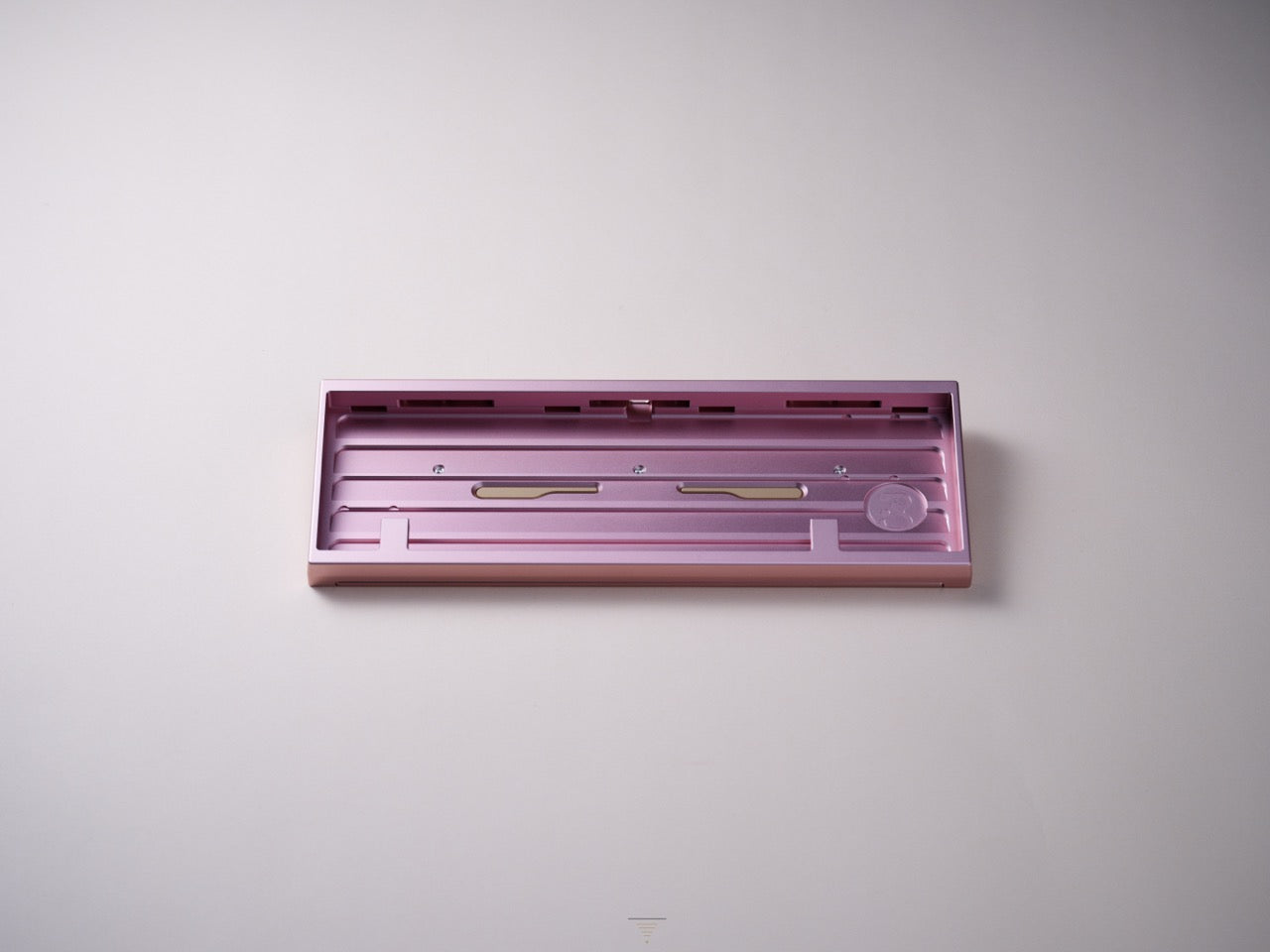

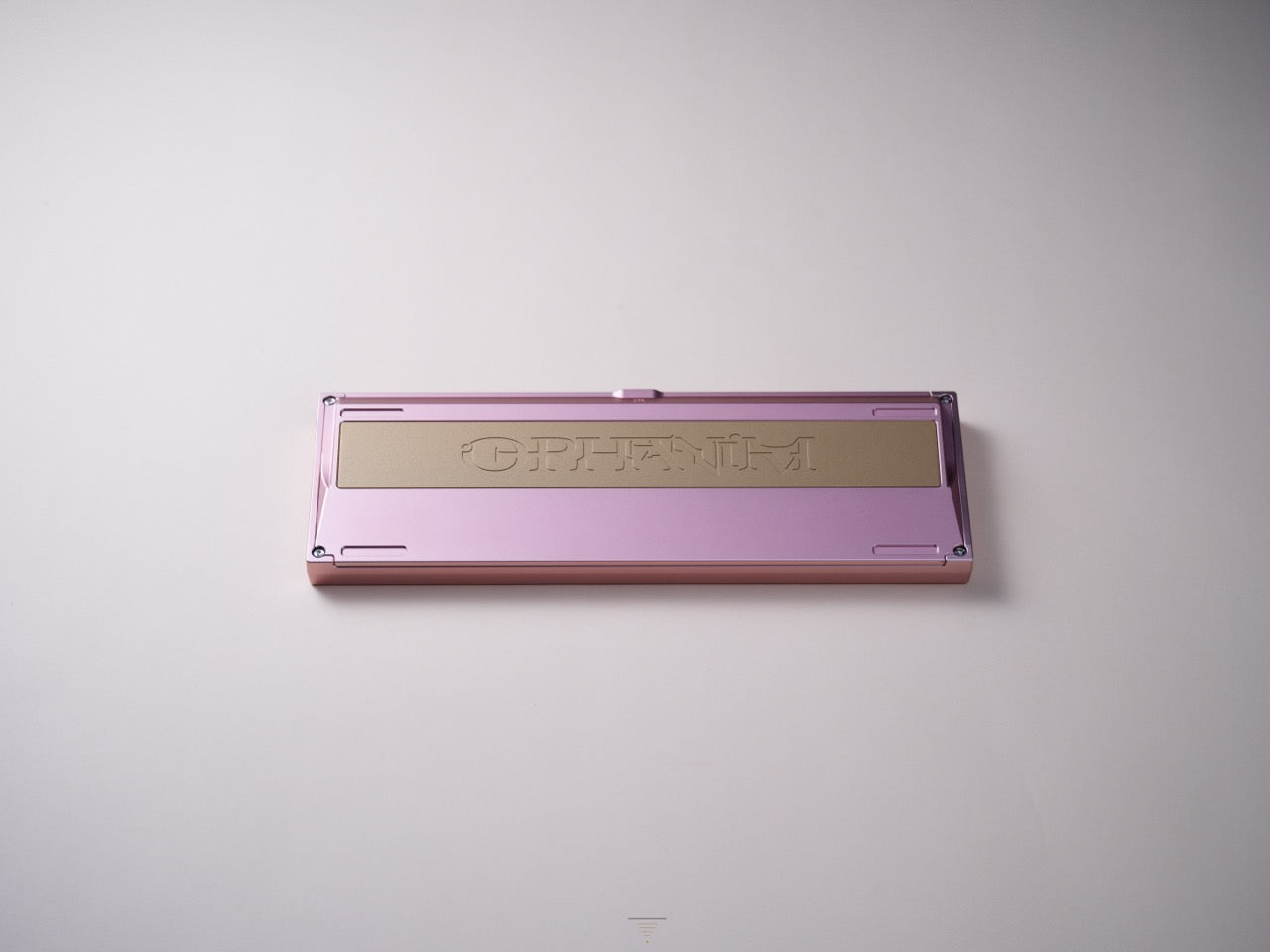

Flesh	Light Pink Anodized	Light Pink Anodized	Sandblasted and Clear Coated Brass

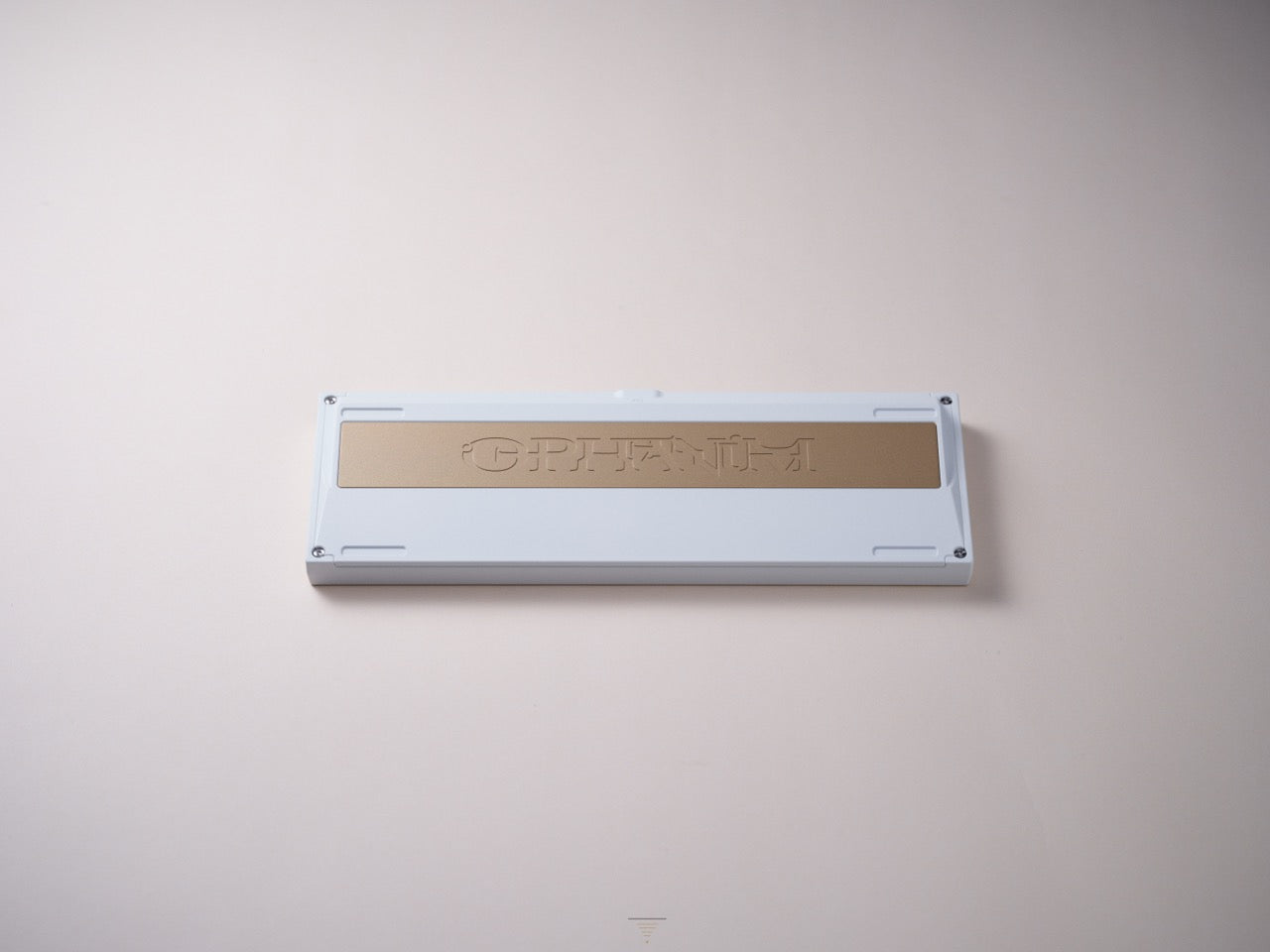

Angel	Sparkle White Coating	Sparkle White Coating	Sandblasted and Clear Coated Brass

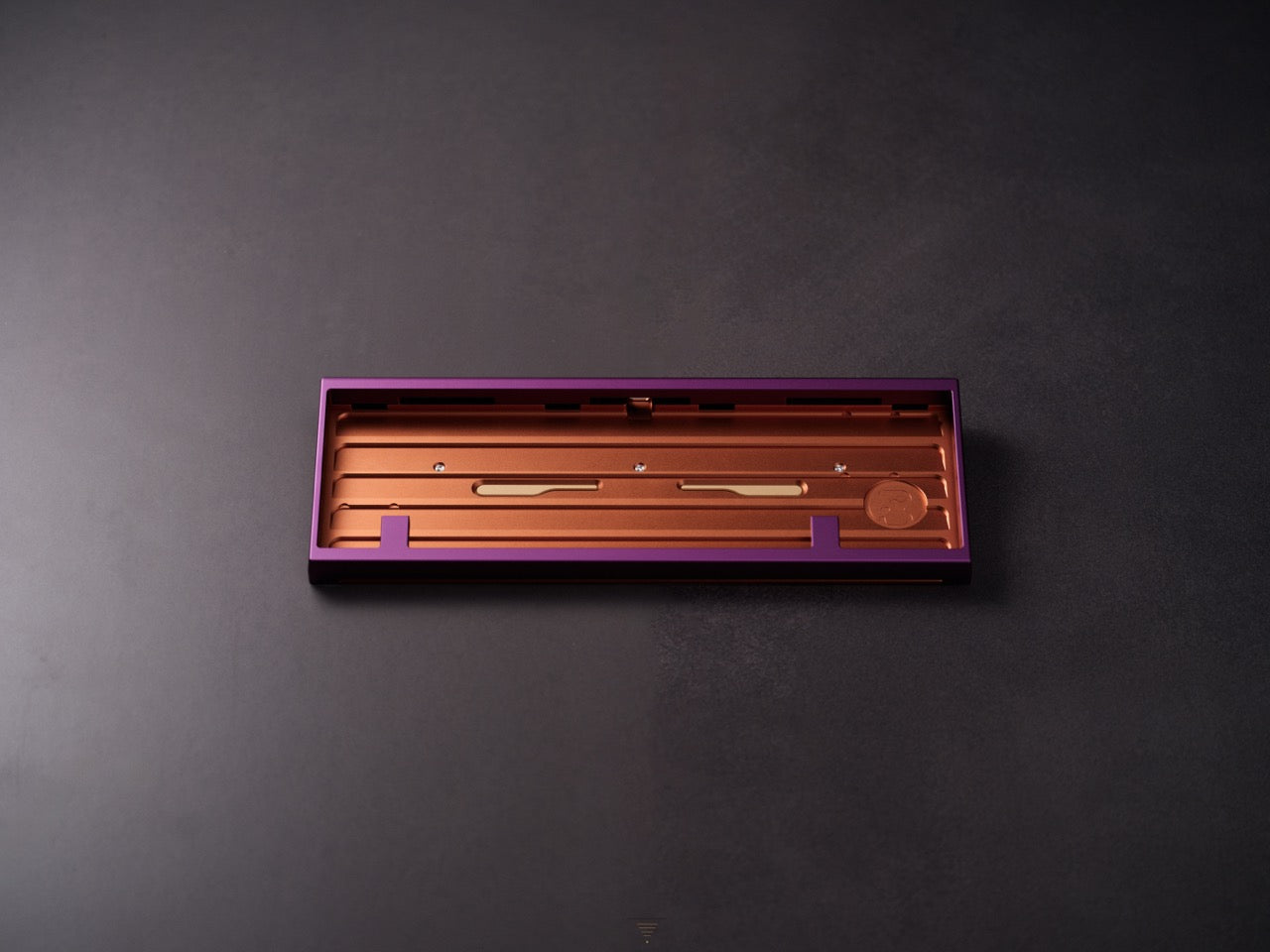

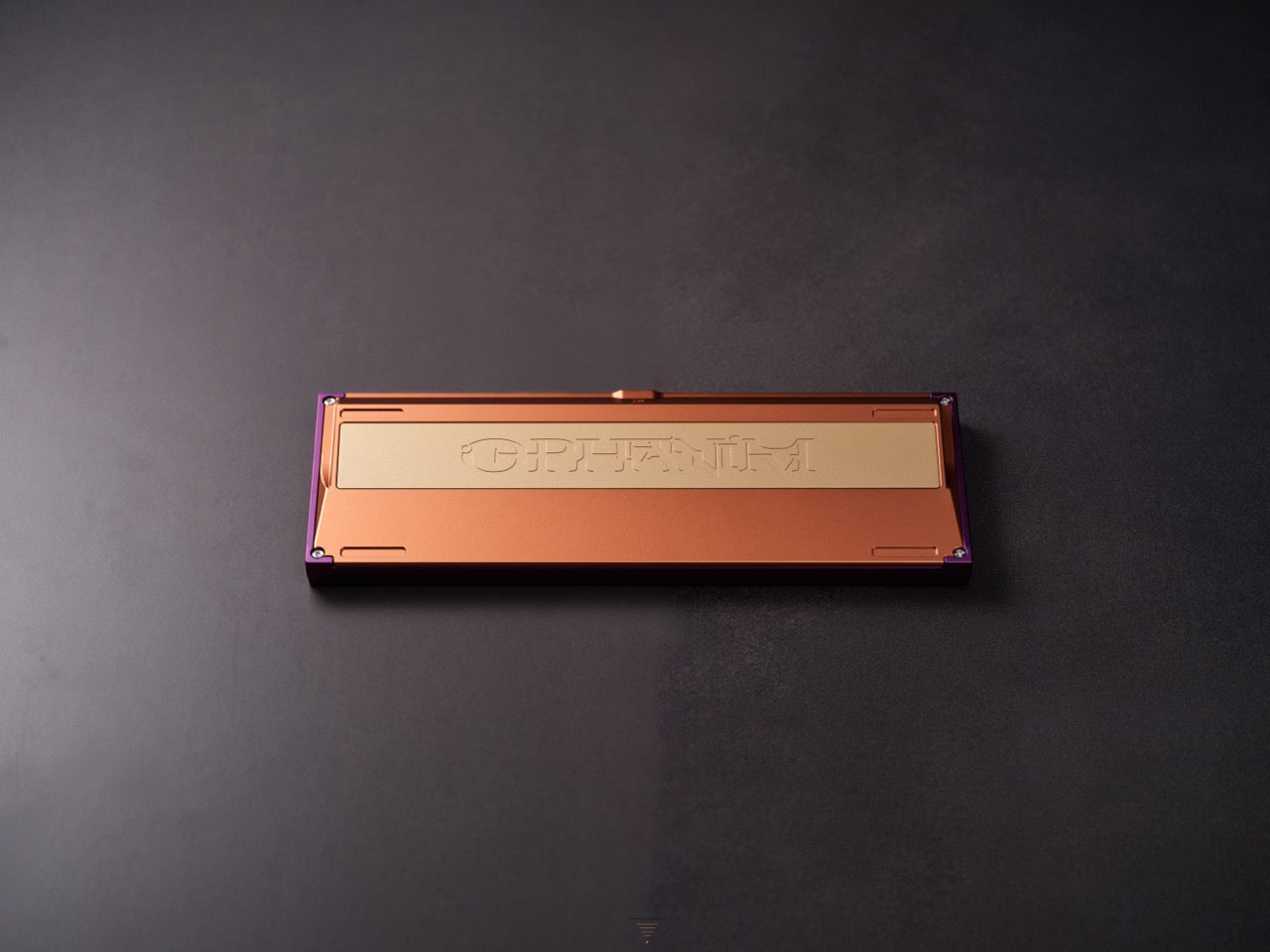

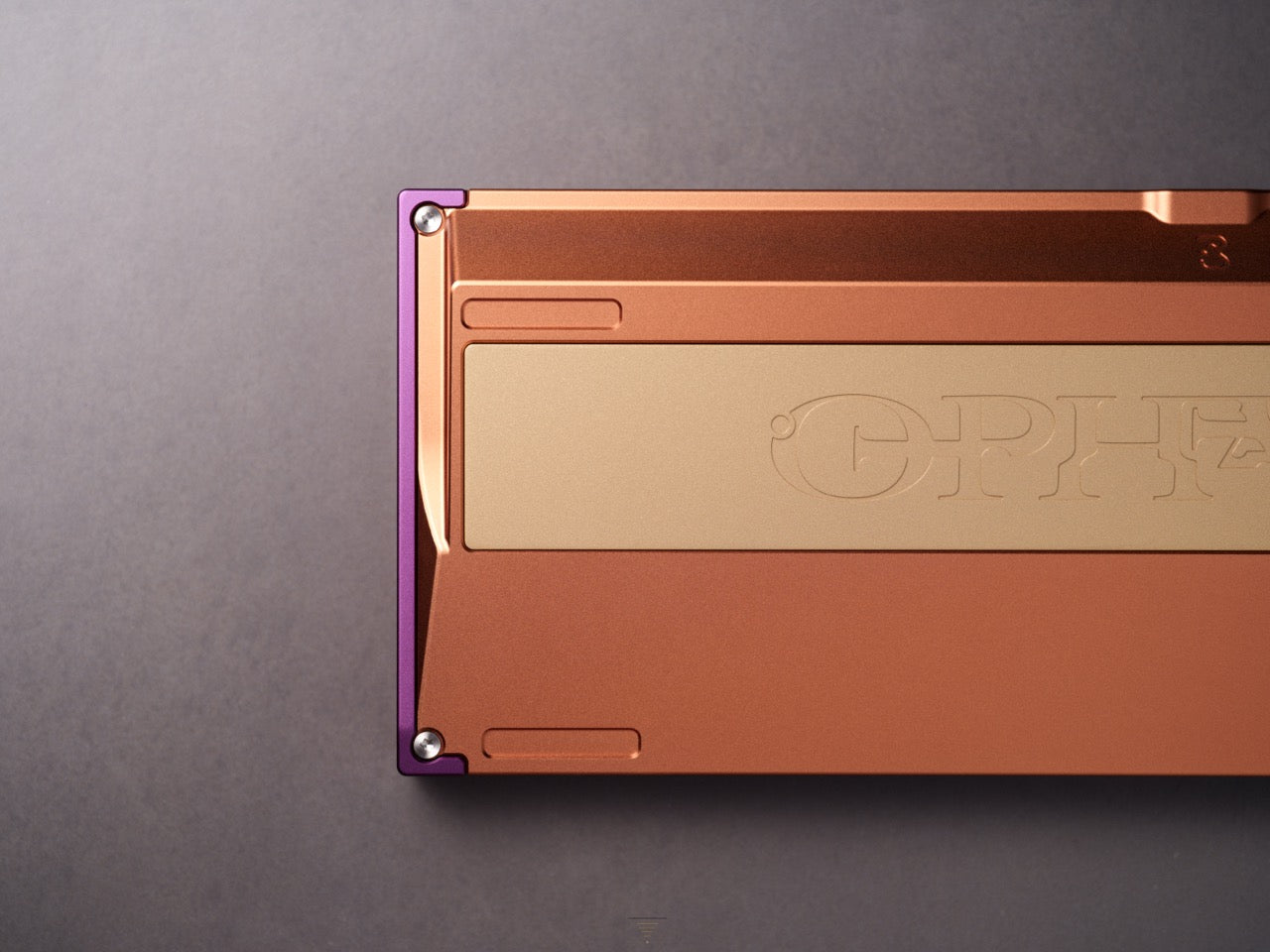

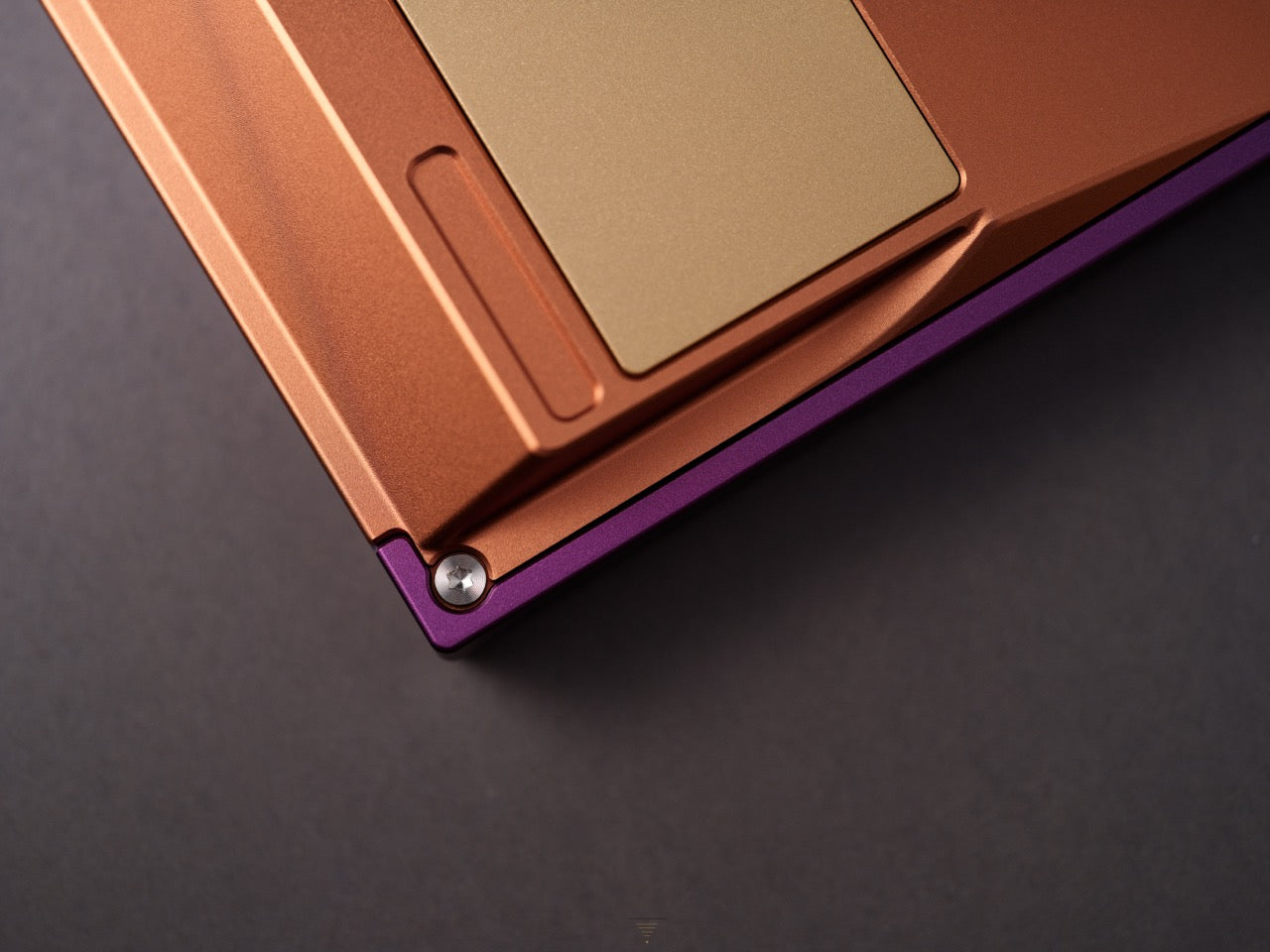

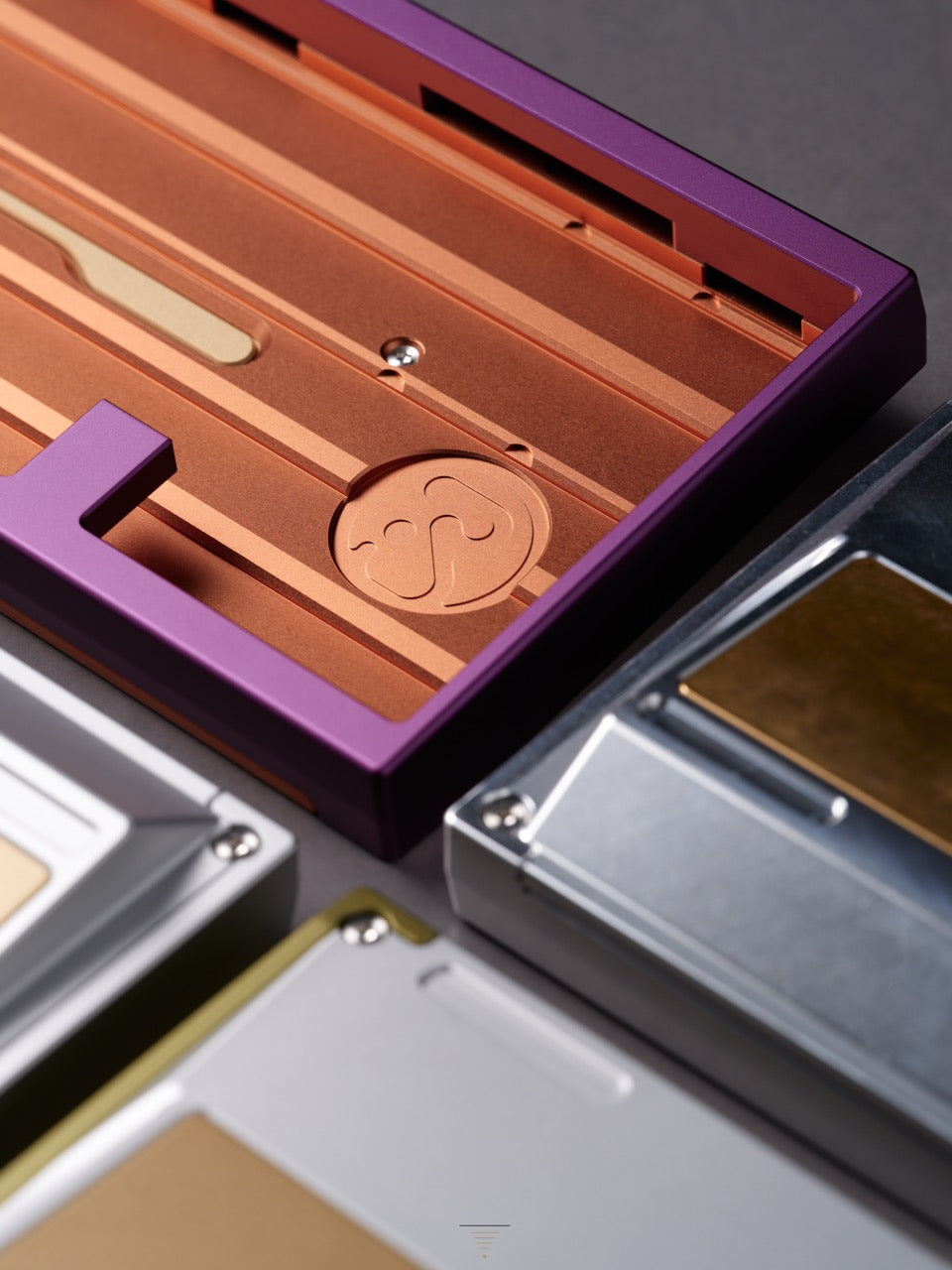

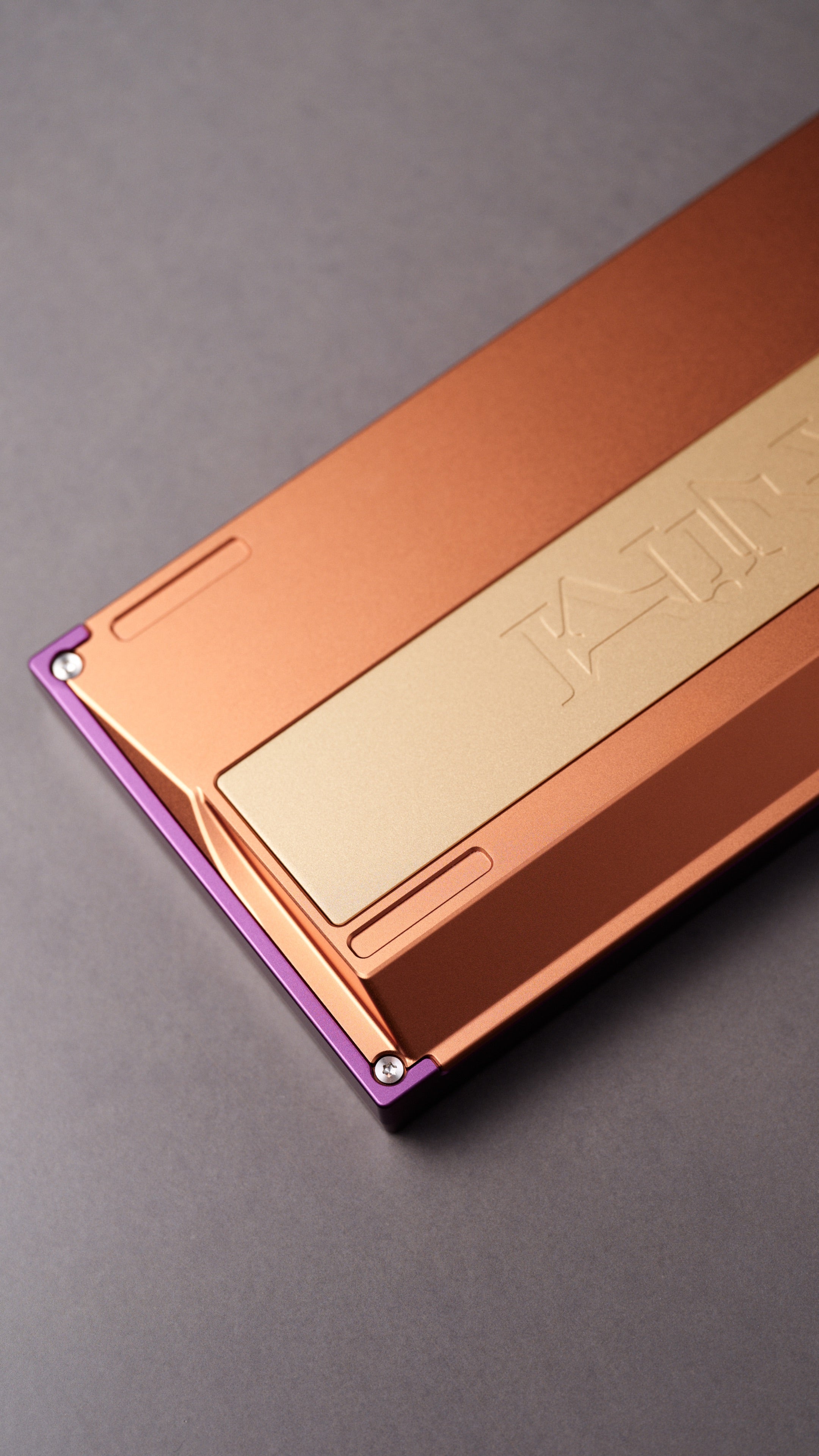

Ancient	Purple Anodized	Burnt Orange Anodized	Sandblasted and Clear Coated Brass

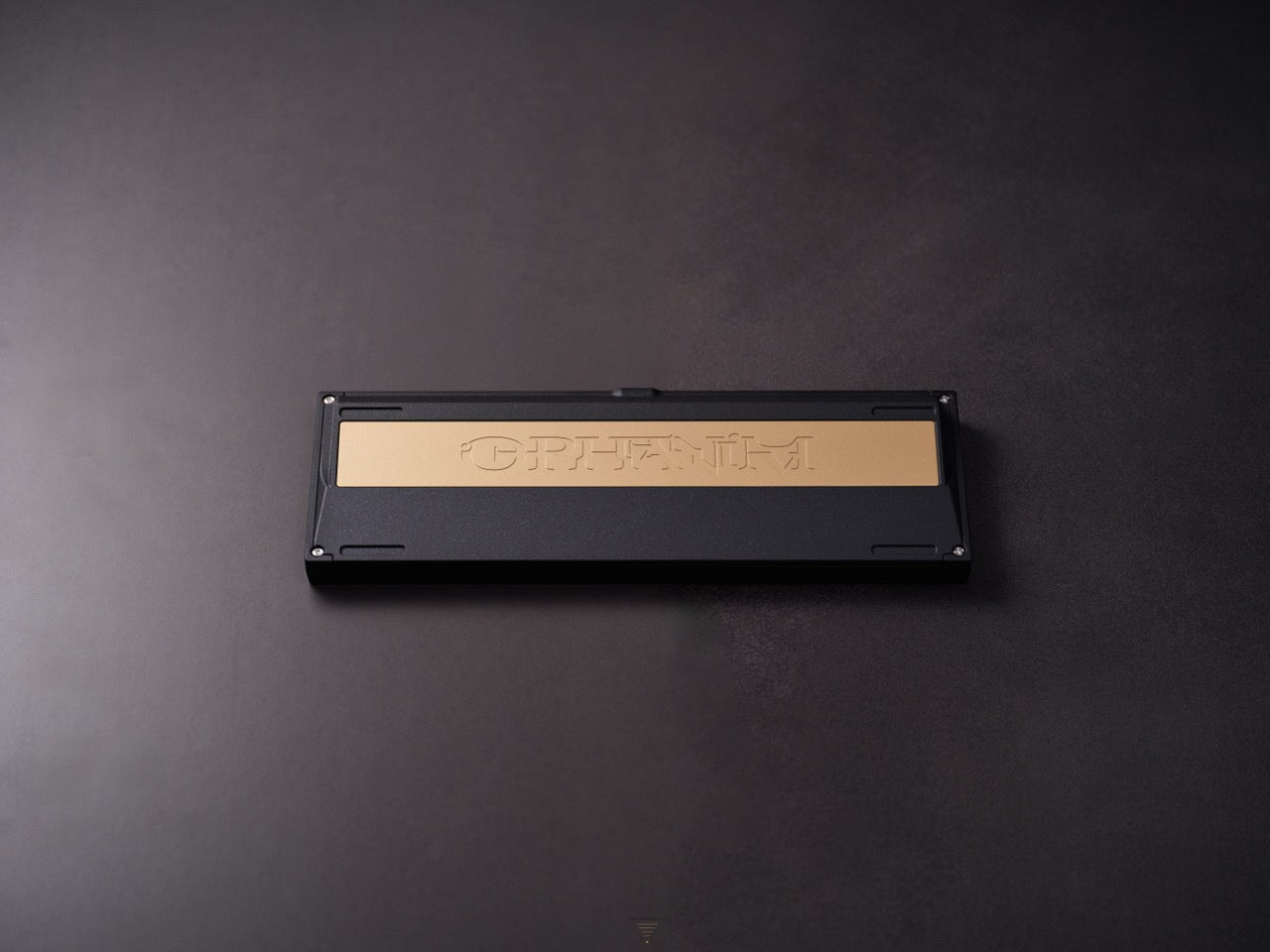

Firmamento	Sparkle Black Coating	Sparkle Black Coating	Sandblasted and Clear Coated Brass

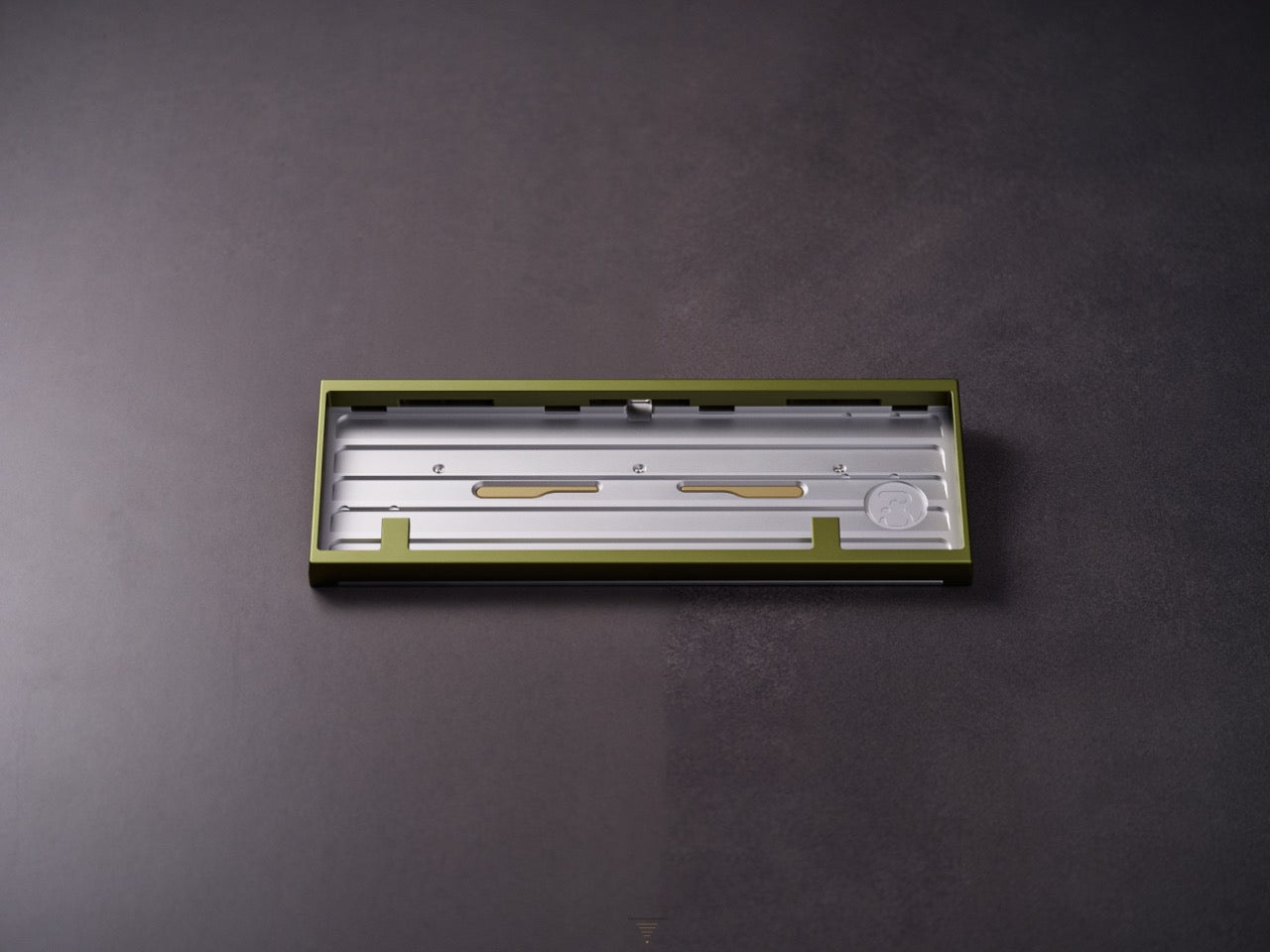

Unnatural	Green Anodized	Silver Anodized	Sandblasted and Clear Coated Brass

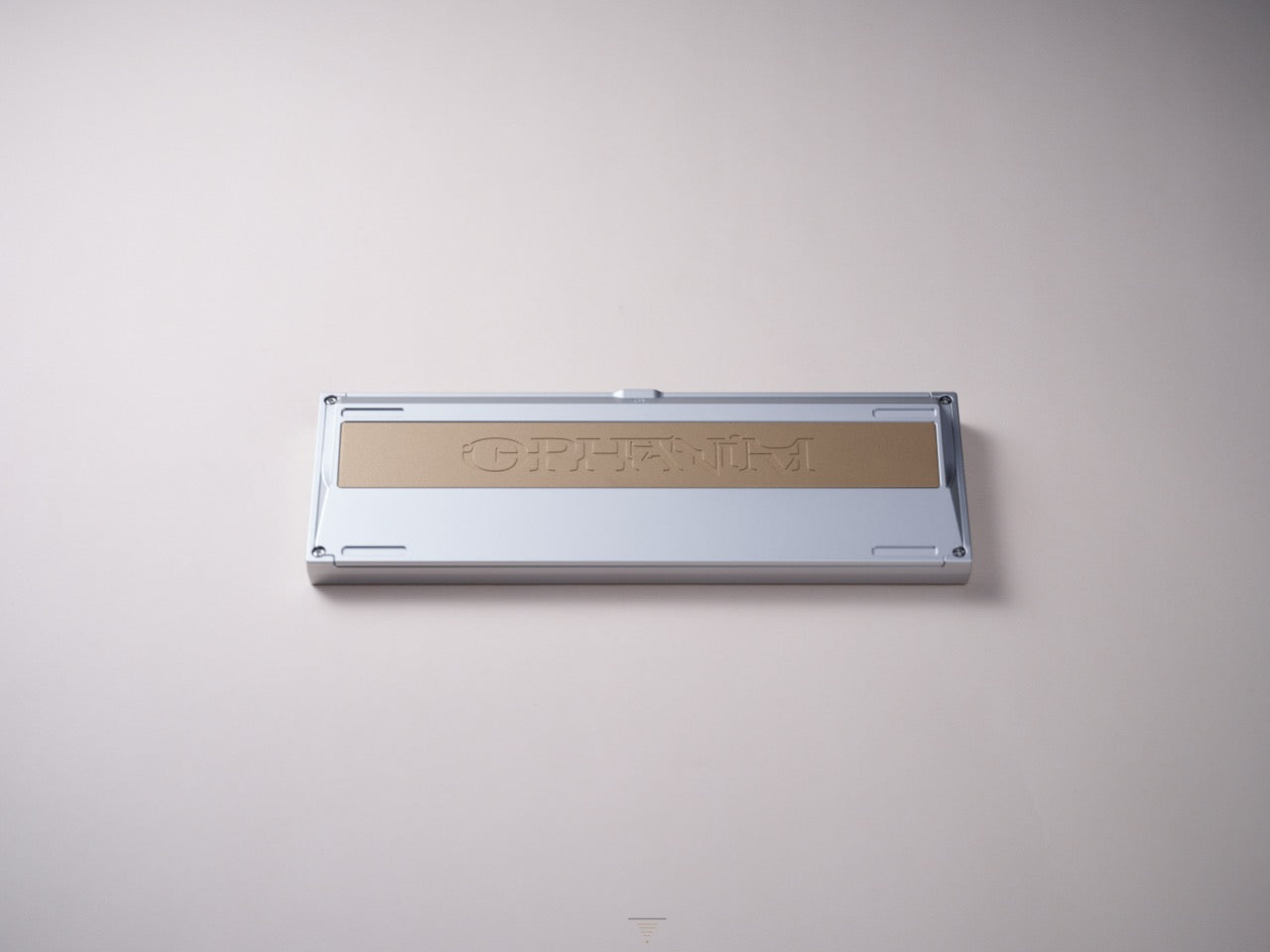

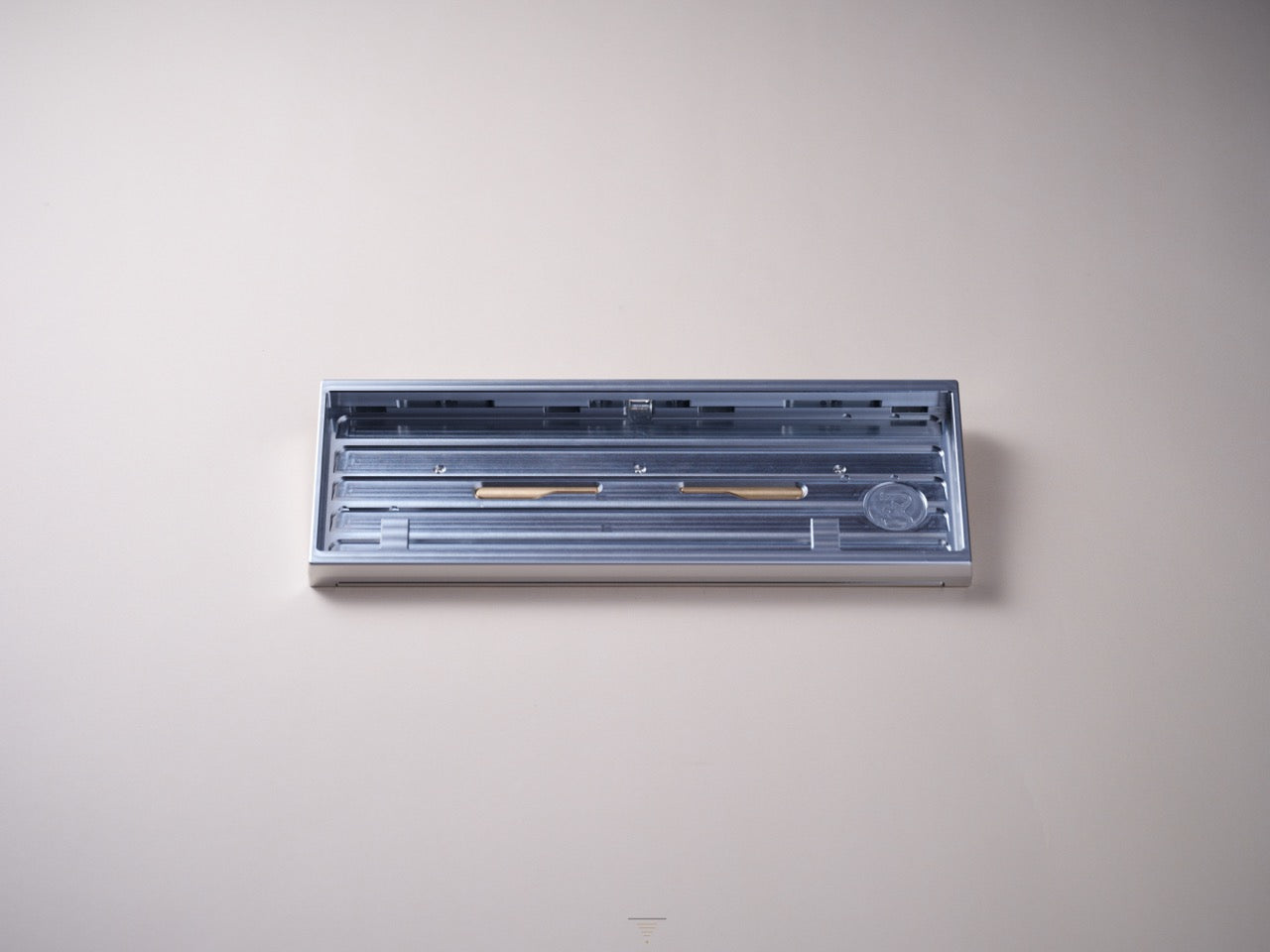

Archangel	Silver Anodized	Silver Anodized	Sandblasted and Clear Coated Brass
Delusion	Raw + Clear Anodize	Raw + Clear Anodize	Raw Brass

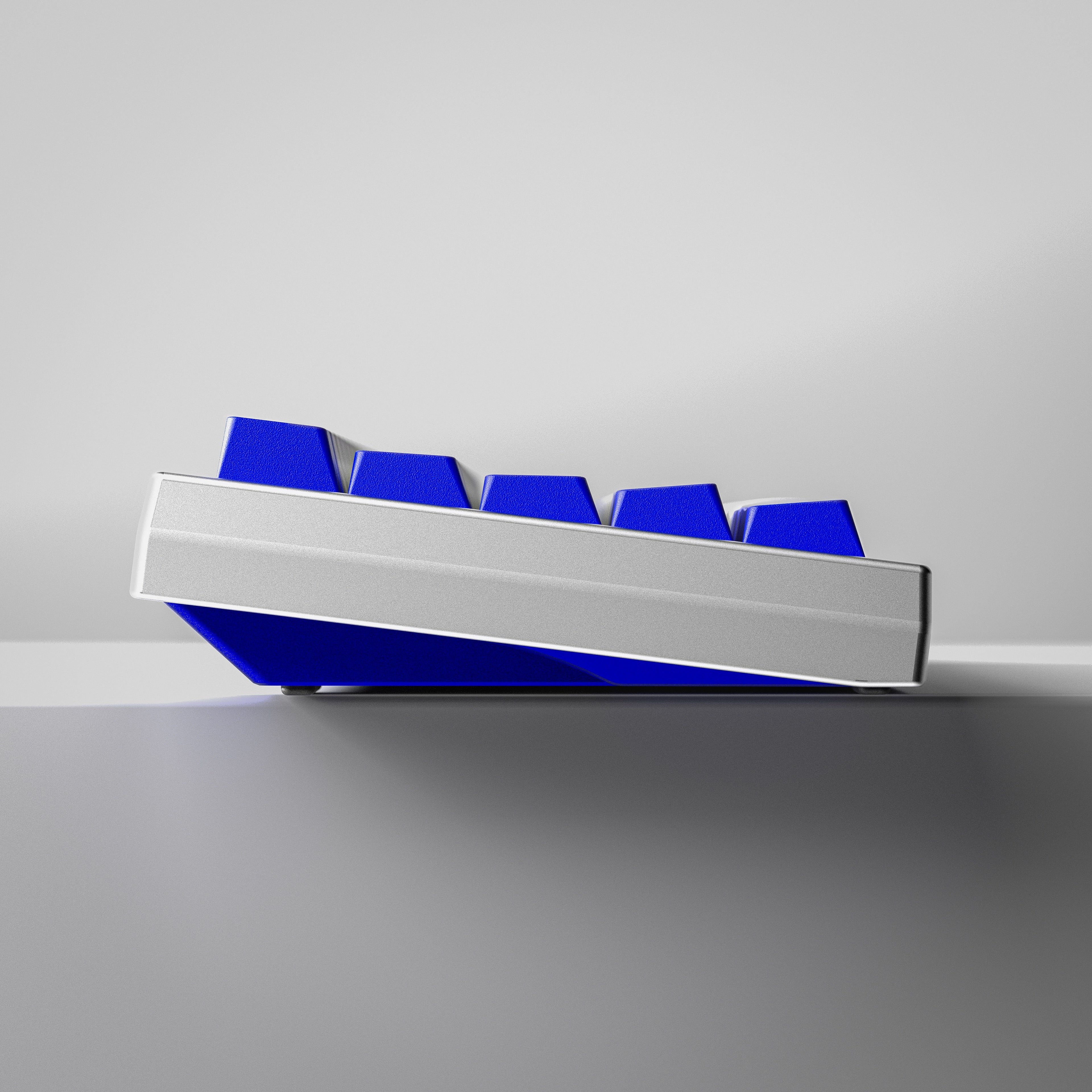

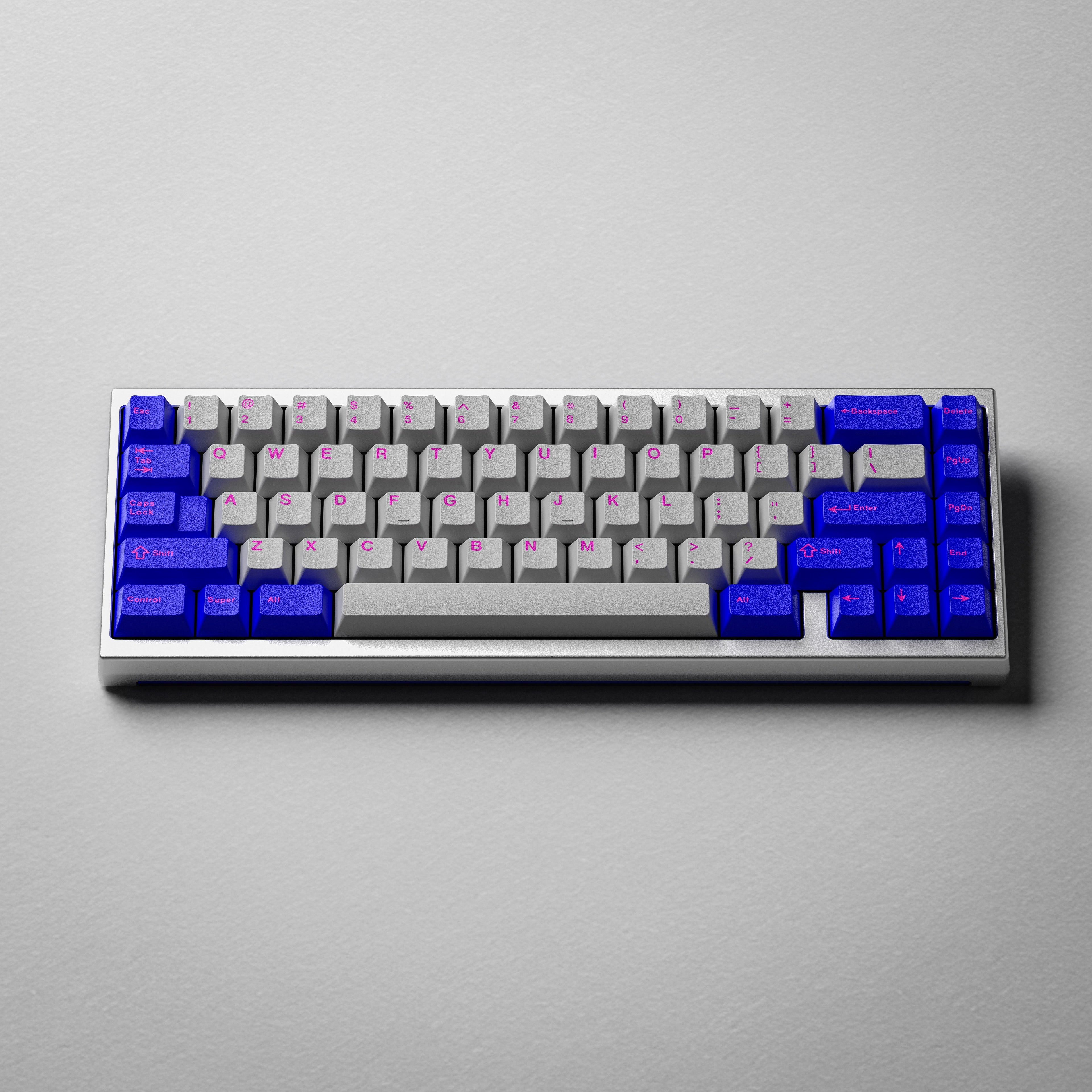

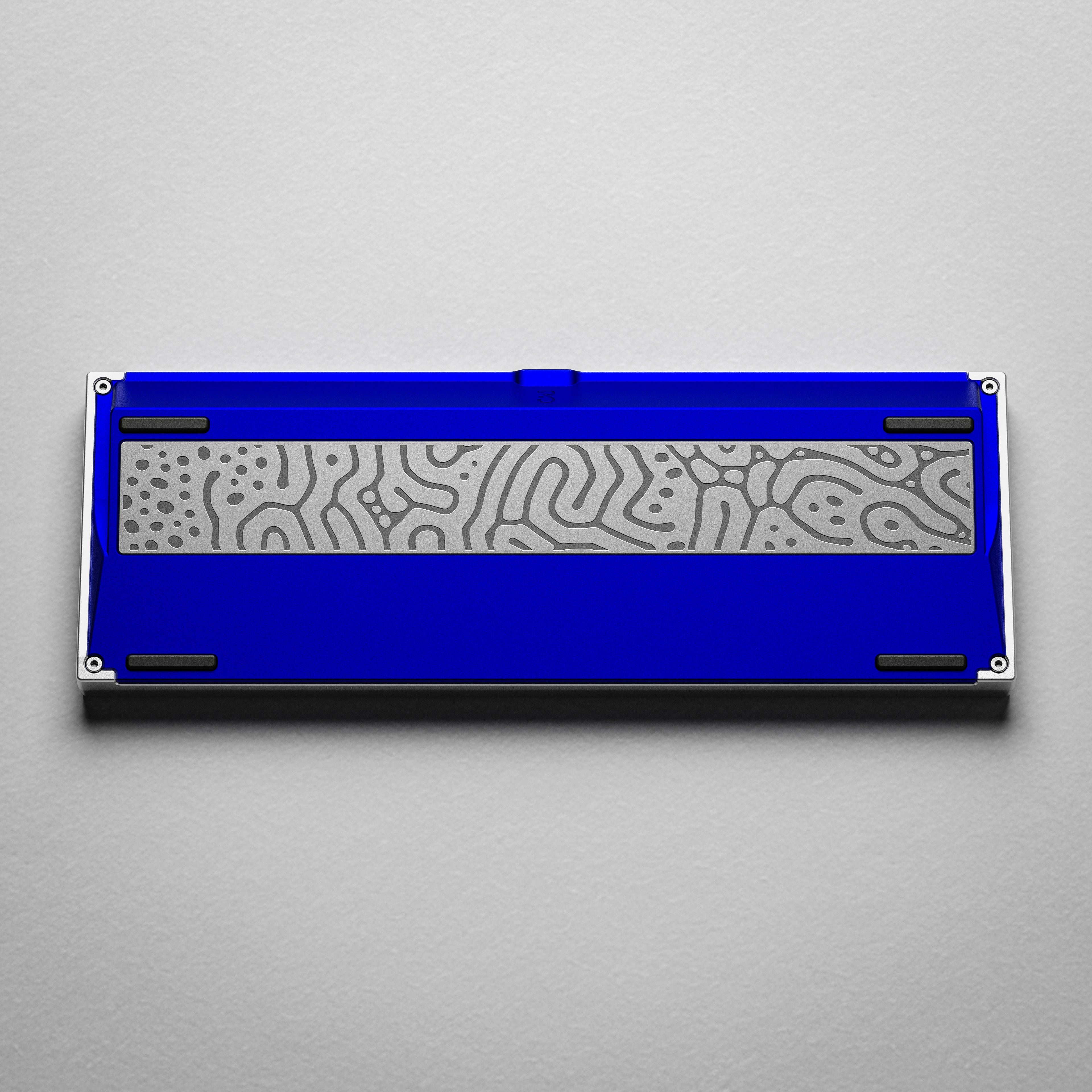

Ferrofluid	Silver Anodized	Blue Anodized	Sandblasted Stainless Steel

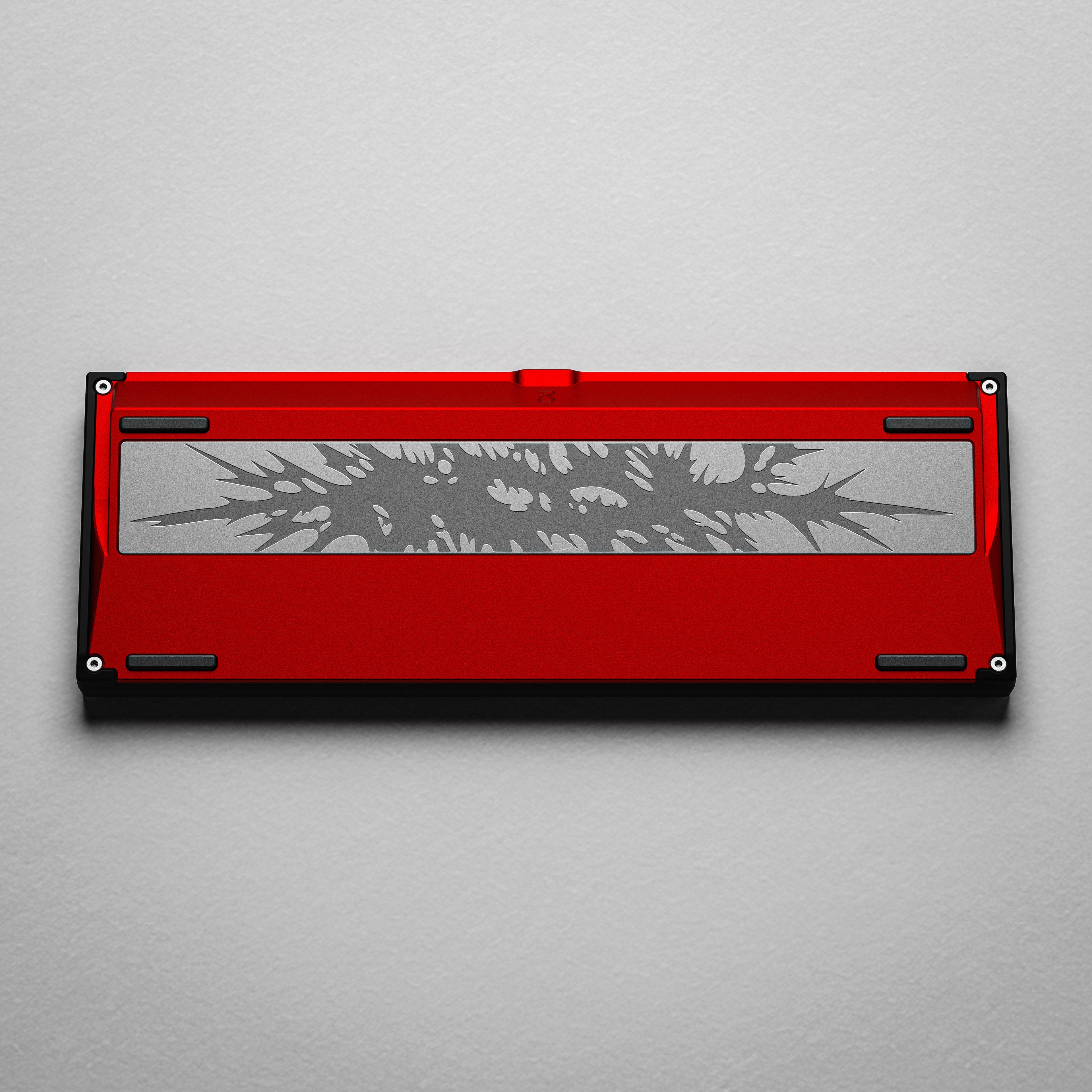

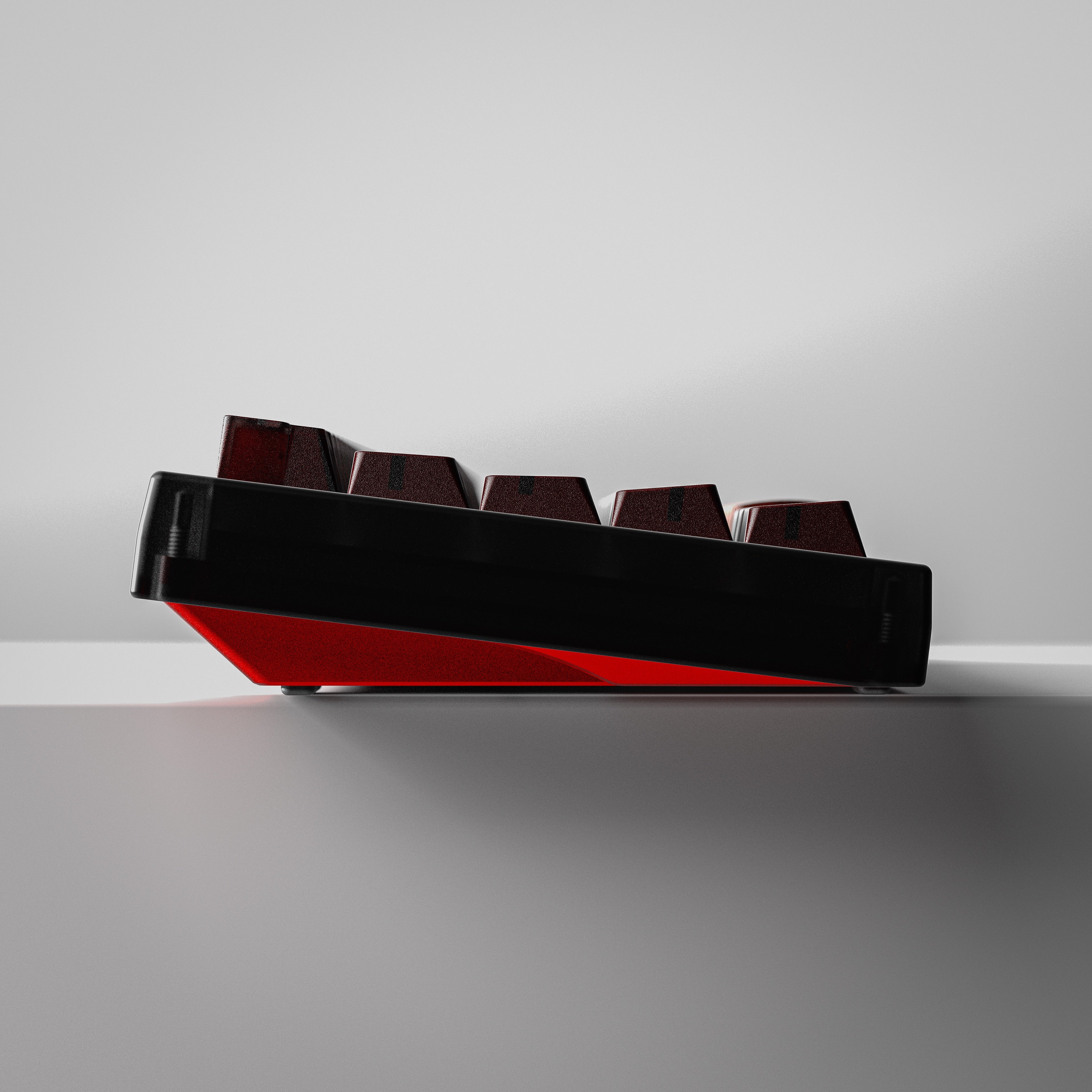

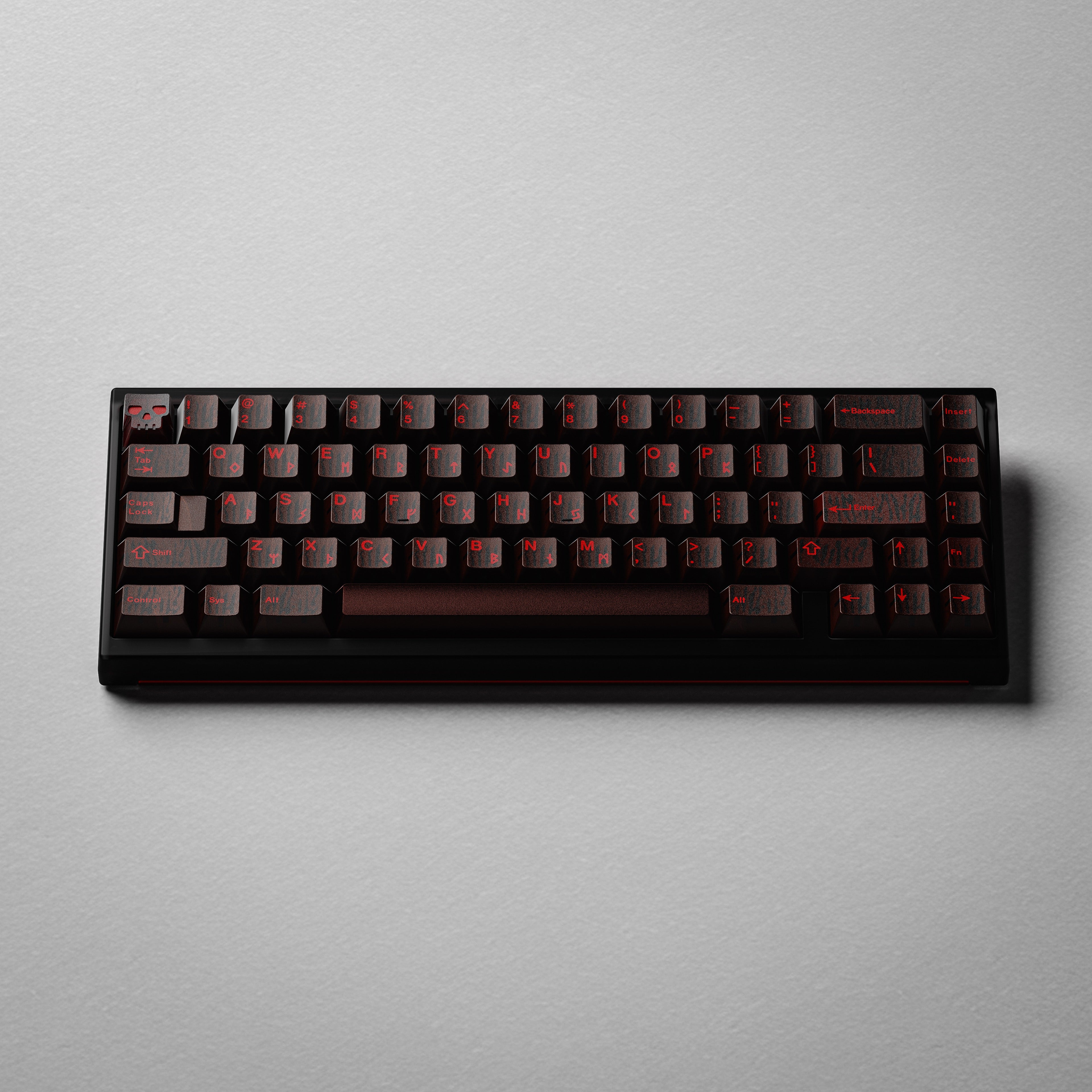

Pandemonium	Smokey Acrylic	Red Anodized	Sandblasted Stainless Steel
