[INSTOCK] QK & NEO KEYBOARDS

สินค้าพร้อมส่ง จัดส่งภายใน 1-2 วัน

Keyboard Kit ไม่มีสวิตช์และคีย์แคป

สินค้าคีย์บอร์ด QK และ NEO รอบ Extra จำหน่าย In-stock จะมีอัพเดทหลังจัดส่งรอบ Pre-order ประมาณ 1-2 วัน

1. มีจำนวนจำกัด ไม่สามารถเลือก Configuration ได้ จะมาเป็นแพคตามชื่อตัวเลือกสินค้า
2. ราคาจะบวกเพิ่มจากรอบ Pre-order ตัวละ 300 บาท

3. หากต้องการสั่งซื้อรอบพรีออเดอร์ สามารถติดตามรอบพรีได้จากเพจ Aiglatson Studio

QK80Mk2

PCB Layout:

Specifications:

• Case Material: 6063 Aluminum
• Typing Angle: 7° angle
• Mounting Style: PCB Gasket/Isolated bottom mount
• PCB: Wired Solder | Wired Hotswap | Tri-mode Hotswap
• Keyboard Weight: ~1.8kg unbuilt | ~2.2kg built
• Width: 362mm
• Depth: 137mm
• Front Height: 19mm
• Rear Height: 36mm

Content List:

• Keyboard case
  • Includes pre-installed screen module and screen daughterboard
  • Includes two pre-installed 4000 mAh batteries
  • Includes four pre-installed rubber feet
  • Includes pre-installed PCB daughterboard with magnetic connector
  • Includes six pre-installed leaf springs
• PCB Kit
  • PCB of your choice
  • PET sheet (included only with per-key RGB PCB)
  • IXPE sheet
  • PCB Foam
• Plate of your choice
• Case foam and anti-static film
• Accessory pack:
  • 2.4g dongle
  • Silicone gaskets
  • Backup screen ribbon cable
  • Backup case corner protector
  • Backup screws and rubber feet
• Free gifts (Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced):
  • Stabilizers
  • Keyboard protective case
  • Switch and keycap puller
  • screwdriver
  • USB-C cable

NEO75 Cu

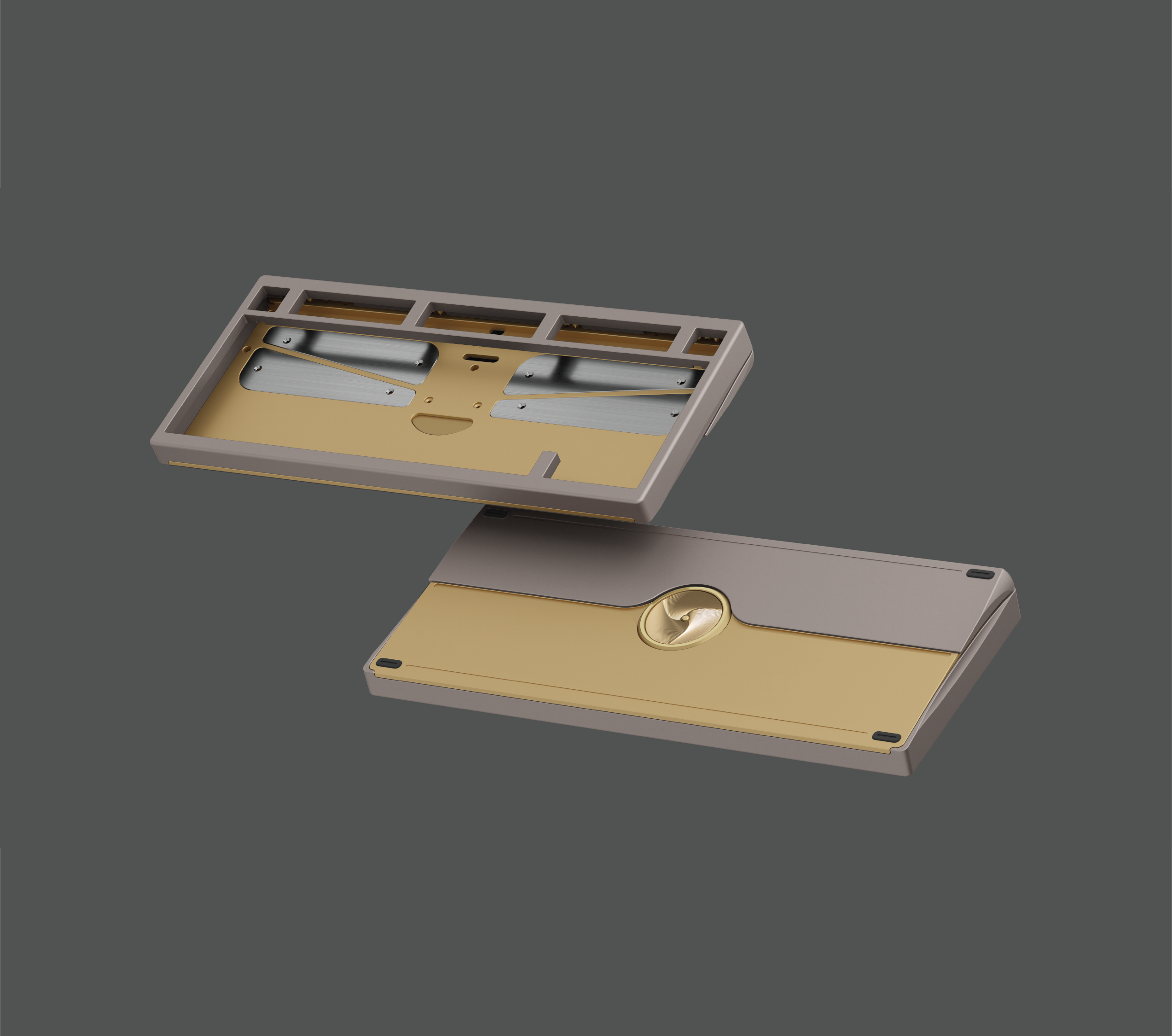

BRASS vs COPPER Bottom

PCB Layout:

Specifications:

• 75% Layout

• Top Case Material: Aluminum
• Bottom Case Material: Brass or Copper
• Dual-Mounting: Gasket Mount, Isolated Bottom Mount
• PCB: Sold Separately

  • ANSI & ISO Support
  • Thickness: 1.6mm, Non-flex Cut
  • NKRO
  • No Per-key RGB
  • Solder, Hotswap Supports: Wired USB-C Connection
  • Tri-mode Suports: Wired USB-C, Bluetooth, Wireless 2.4GHz
• Plates: Sold Separately

  • Carbon Fiber, Aluminum, FR4, POM, PP
• Badge: Sold Separately

  • Colors: Black, Gold Silver
  • Designs: Orbit, Nova, Vortex
• Typing Angle: 7°
• Front Height: 16.8mm
• Dimensions: 138.8 x 318.3mm
• Weight:

  • Wired PCB (including SS Internal Weight): 2.2kg unbuilt; 2.7kg built
  • Tri-mode PCB (including batteries): 2kg unbuilt; 2.4kg built
• Top Case Colors:

  • Anodized: Silver, Black, Grey, Navy, Purple, Burgundy, Green, Grey-gold, Cornflower
  • Spray-Coated: Cream*, Retro White, White*
  • * indicates that the color includes glitter

Content List

• Keyboard Case
  • Includes one pre-installed circular accent badge of your choice on the back
  • Includes one pre-installed square decorative badge on the top right corner
  • For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
  • For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
  • For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment. If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.
• PCB kit
  • PCB of your choice
  • 1x PE sheet
  • 1x PCB Foam
  • Tri-mode PCB comes with a 2.4Ghz dongle
• Plate of your choice
• Poron case foam
• PCB Daughterboard and magnetic connectors - installed
• Gaskets, copper pillars and screws
• Rubber feet in 2 colors
• Case corner protectors - installed
• Stand-offs
• Free Gifts (Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced):
  • Keyboard carrying case
  • 1x Keycap & Switch puller
  • 1 set of PCB clip-in NeoStab
  • USB-C cable

NEO ERGO

Weight:

Badge:

PCB Layout:

Specifications:

• Tented Alice Layout, 60%, WKL

• Gasket Mount
• Case Material: Aluminum
• Kernel Material: Aluminum
• Weight Options:

  • Spray-coated SS: Black, Silver, Golden
  • Copper
  • Mirror PVD SS: Silver, Dusk, Chroma
• Badge Options: Copper, PVD-Black, PVD-Silver, PVD-Golden
• PCB: VIA Supported

  • Tri-mode: Wireless 2.4GHz, Wireless Bluetooth, Wired

    • Two 2200mAh Batteries included with the kit
  • Wired Hotswap, Wired Solder
• Plate Options: Plateless, Carbon Fiber, Aluminum, FR4, POM, PC, PP
• Typing Angle: 8°
• Tenting Angle: 5°
• Dimensions: 112.2 x 355.8mm (14~27mm Front Height)
• Weight:

  • Soldered PCB Config, Barebone: 1.7kg
  • Hotswap PCB Config, Barebone: 1.8kg
  • Tri-mode PCB Config, Barebone: 1.9kg

Content List:

• Case (Top + Bottom + Kernel + Weight)
  • Including one pre-installed external weight of your choice
  • Including one pre-installed kernel of your choice
  • Two 2200 mAh batteries will be installed inside of the kernel part for orders with Tri-mode PCBs
  • Orders with wired PCBs or solder PCBs will receive fillers for the battery compartments
• PCB kit
  • PCB of your choice
  • 1x PE sheet
  • 1x PCB Foam
  • Tri-mode PCB comes with a 2.4Ghz dongle
• Plate of your choice (or plateless with solder PCB)
• Poron case foam
• PCB Daughterboard and magnetic connectors - installed
• Gaskets
• Rubber feet
• LED diffusers
• 4 Case corner protectors - installed
• Free Gifts
  • Disclaimer: If one of these gifts is missing or is damaged, they will not be replaced)
  • Keyboard carrying case
  • 1x Keycap & Switch puller
  • 1 set of PCB clip-in NeoStab
  • USB-C cable

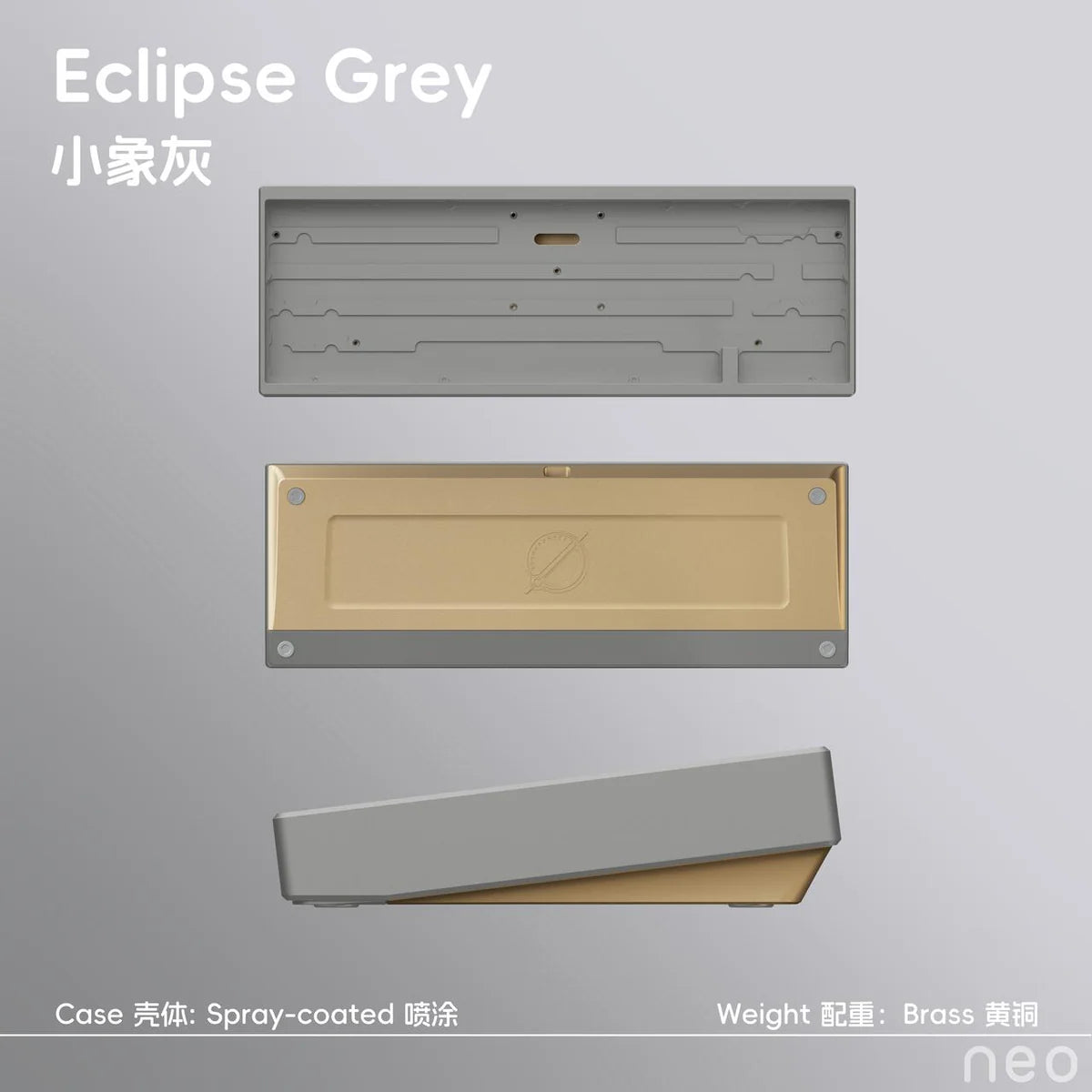

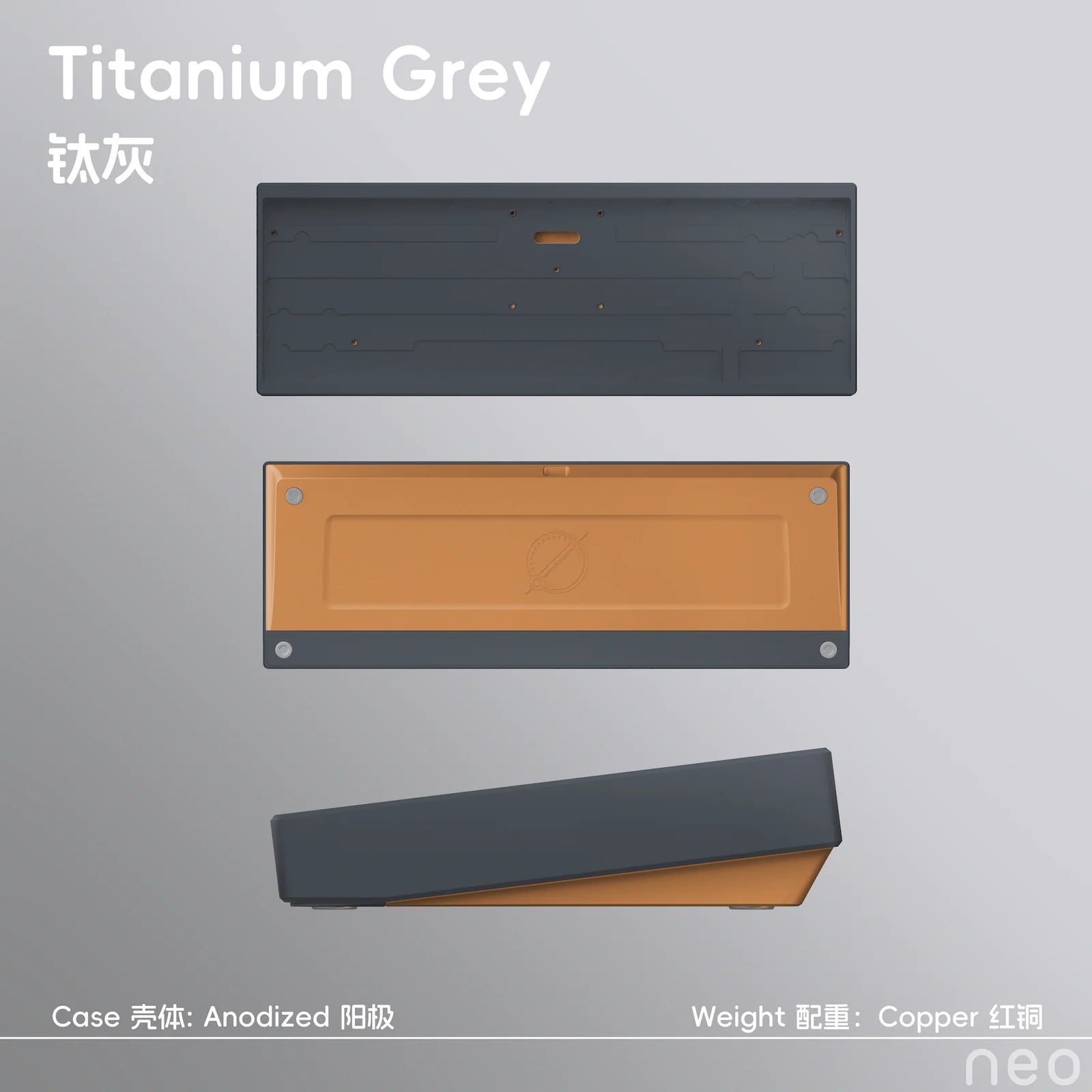

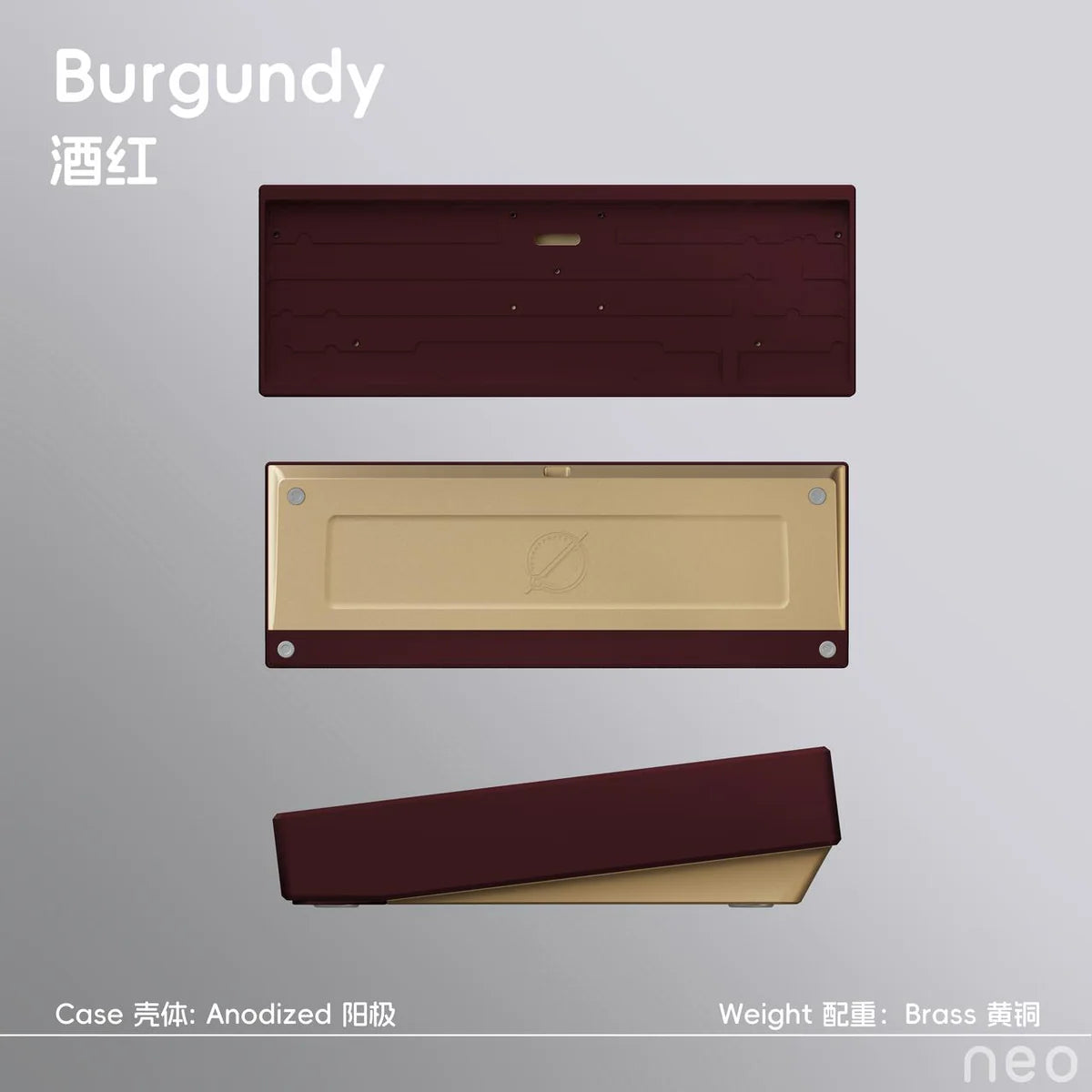

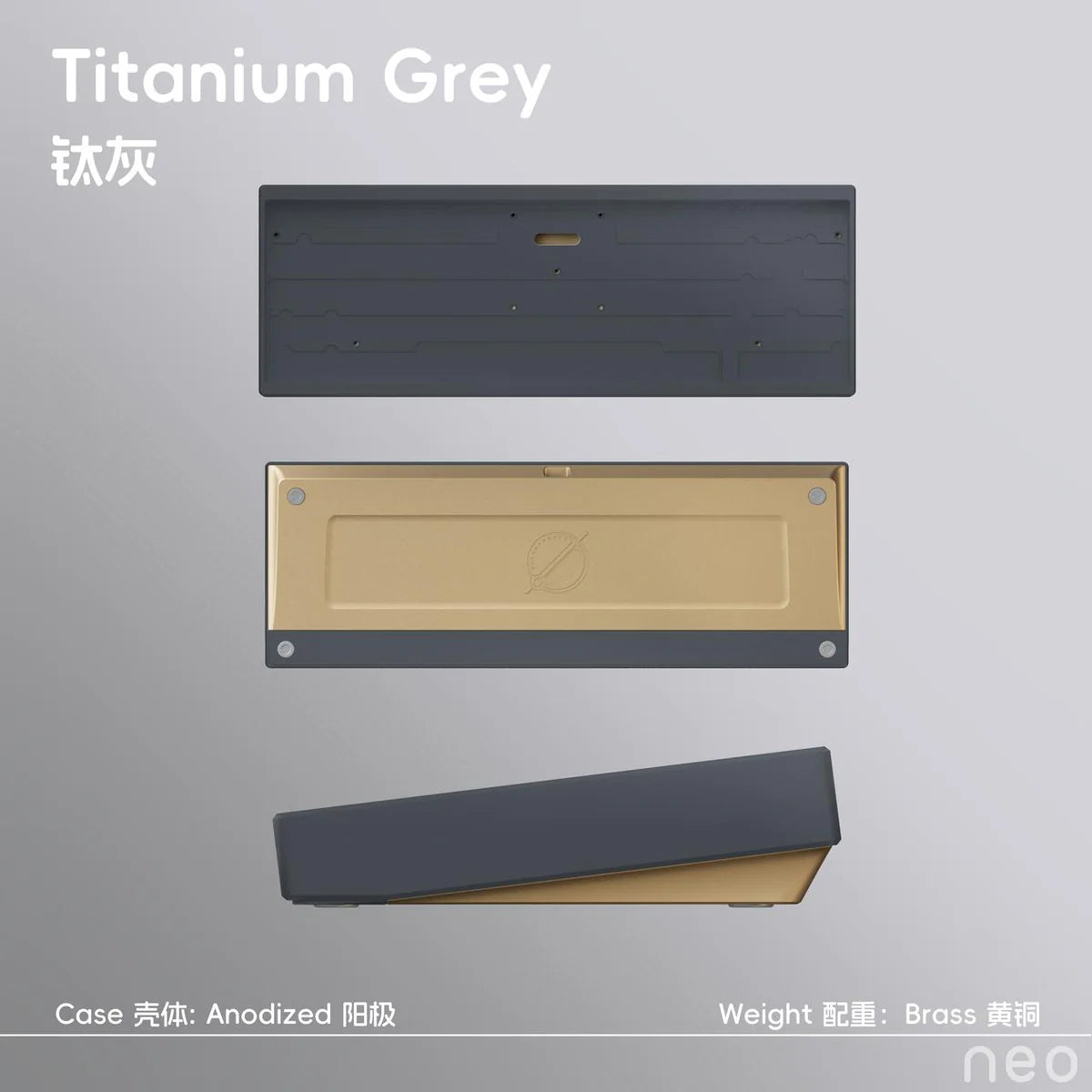

NEO60 Core

Weight Option:

PCB Layout:

Dual-Mounting System:

Specification:

• Typing angle: 8°
• Front height: 18.2mm
• Size: 108.8mm * 292.9mm

PCB:

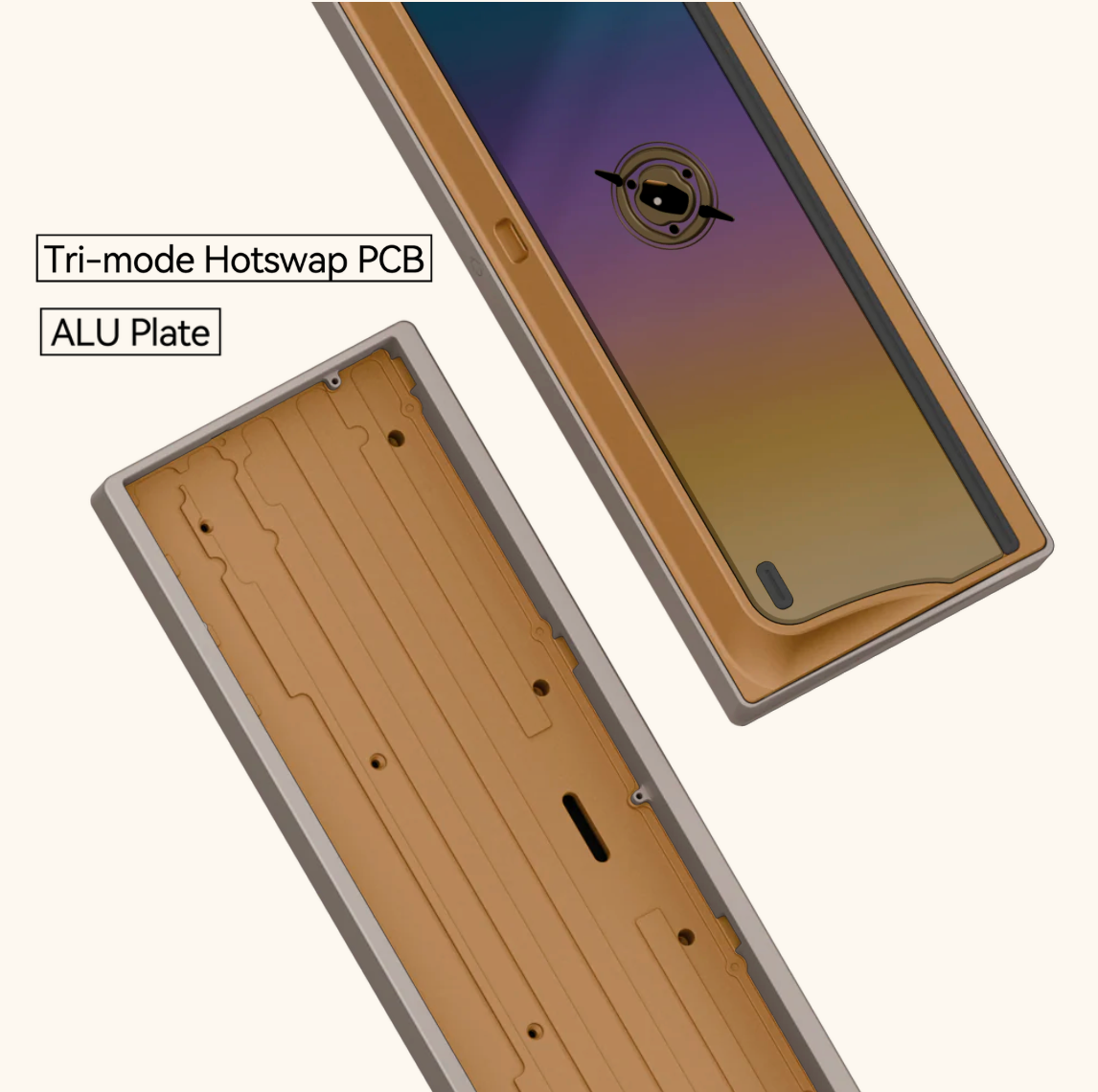

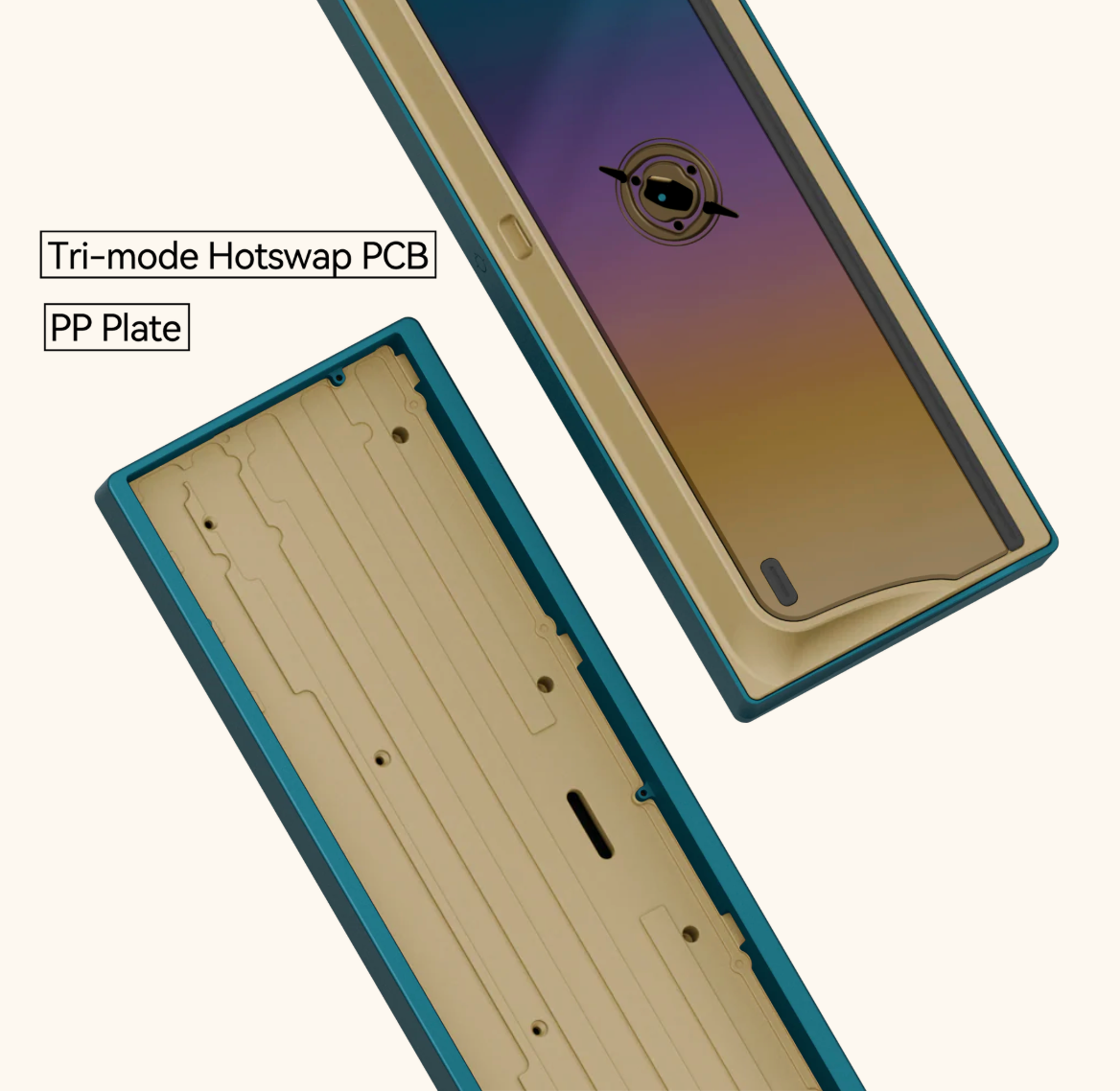

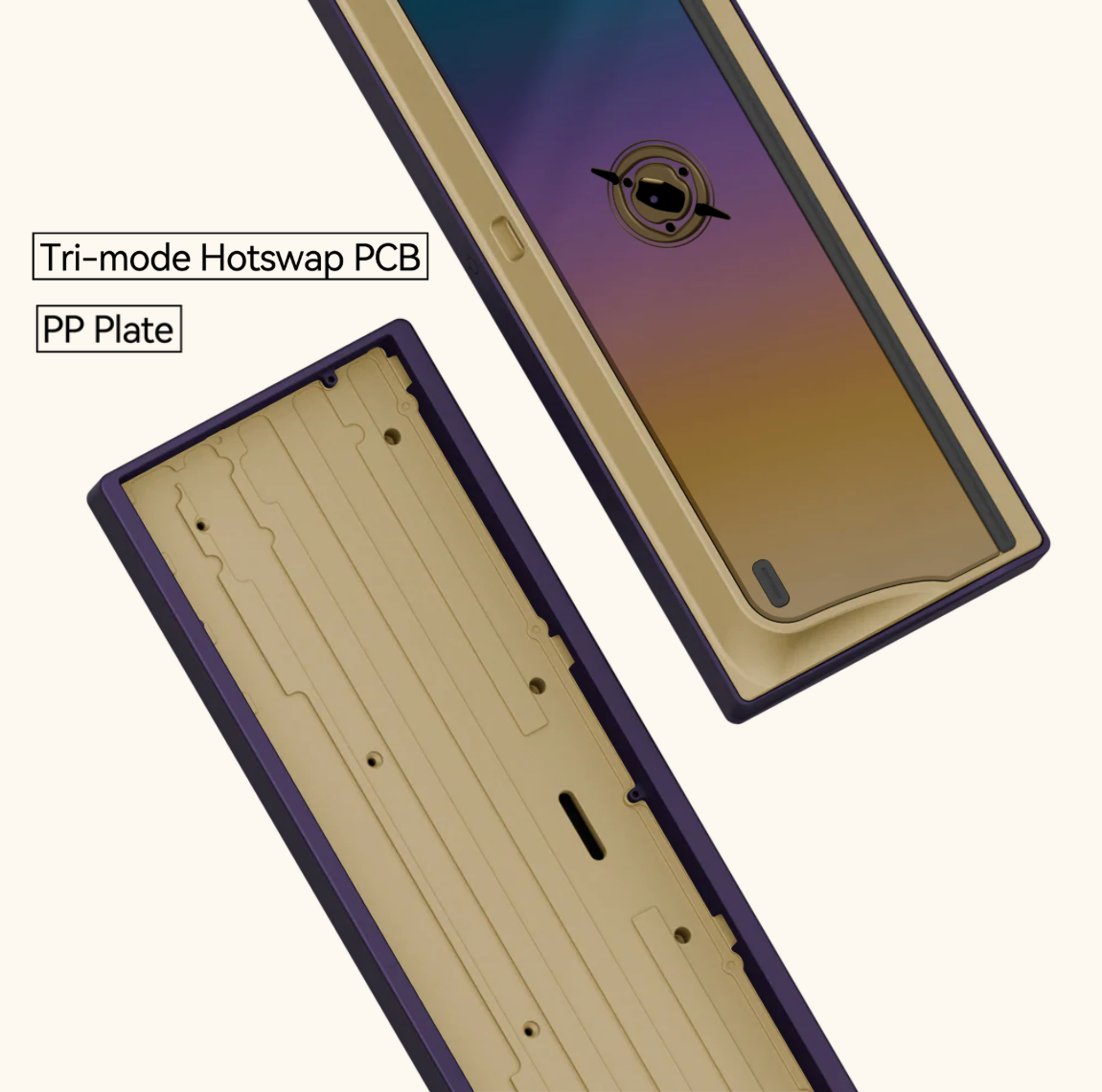

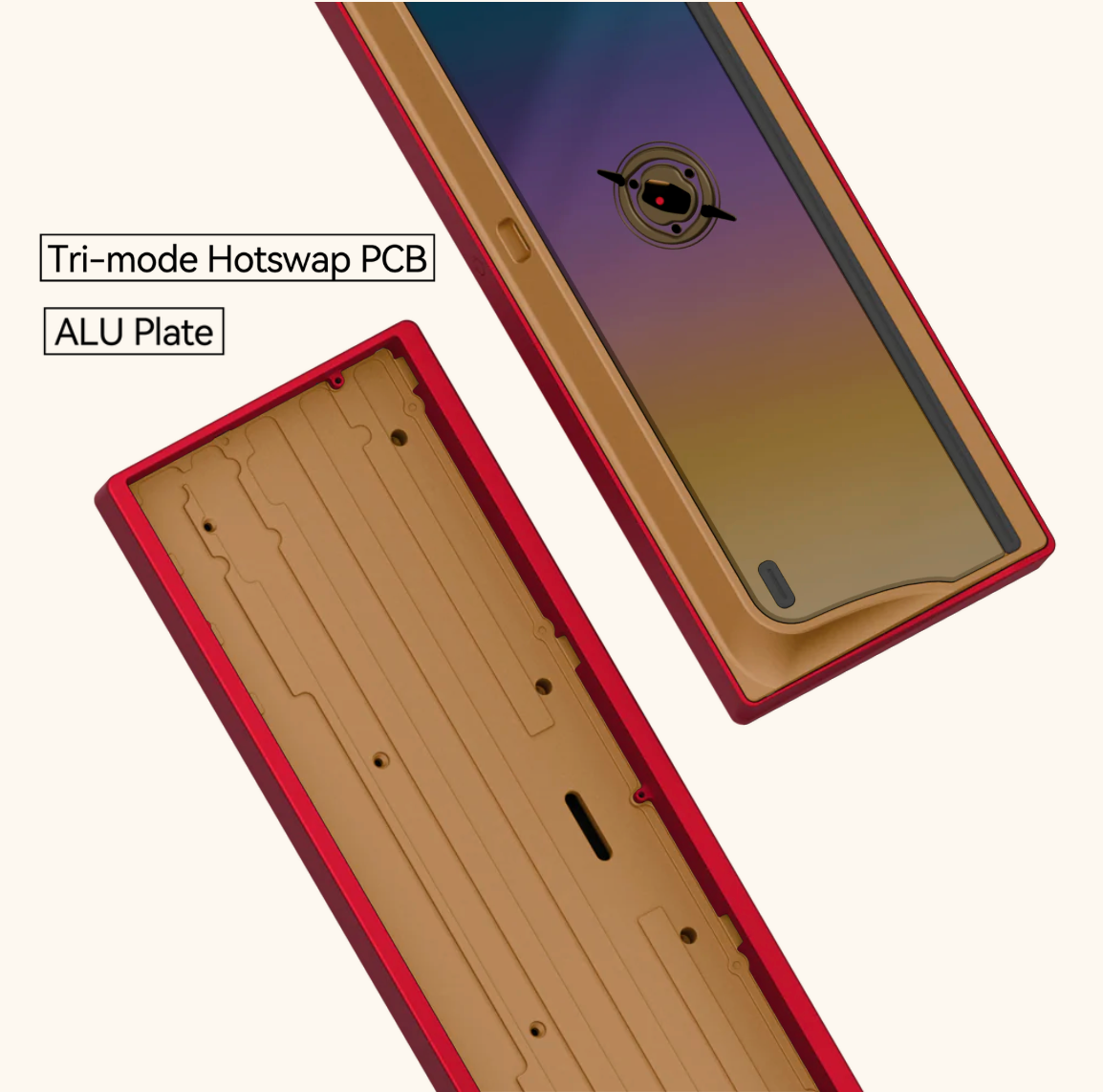

• Tri-mode Hotswap PCB
  • 1.6mm thick, non-flex cut
  • Support USB-C, Bluetooth, and 2.4GHz connection
  • Support both ANSI and ISO layout
  • NKRO
  • NO Per-key RGB

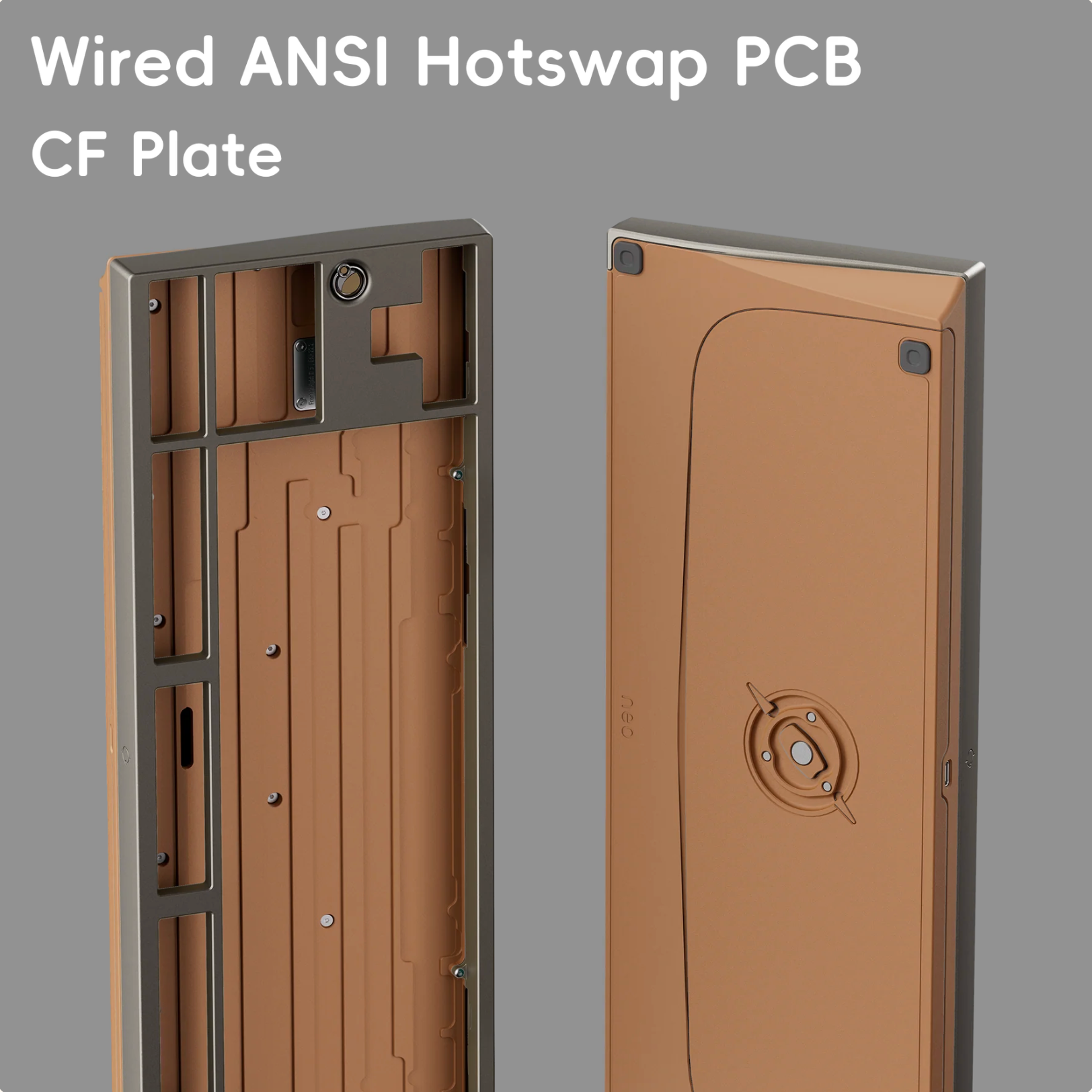

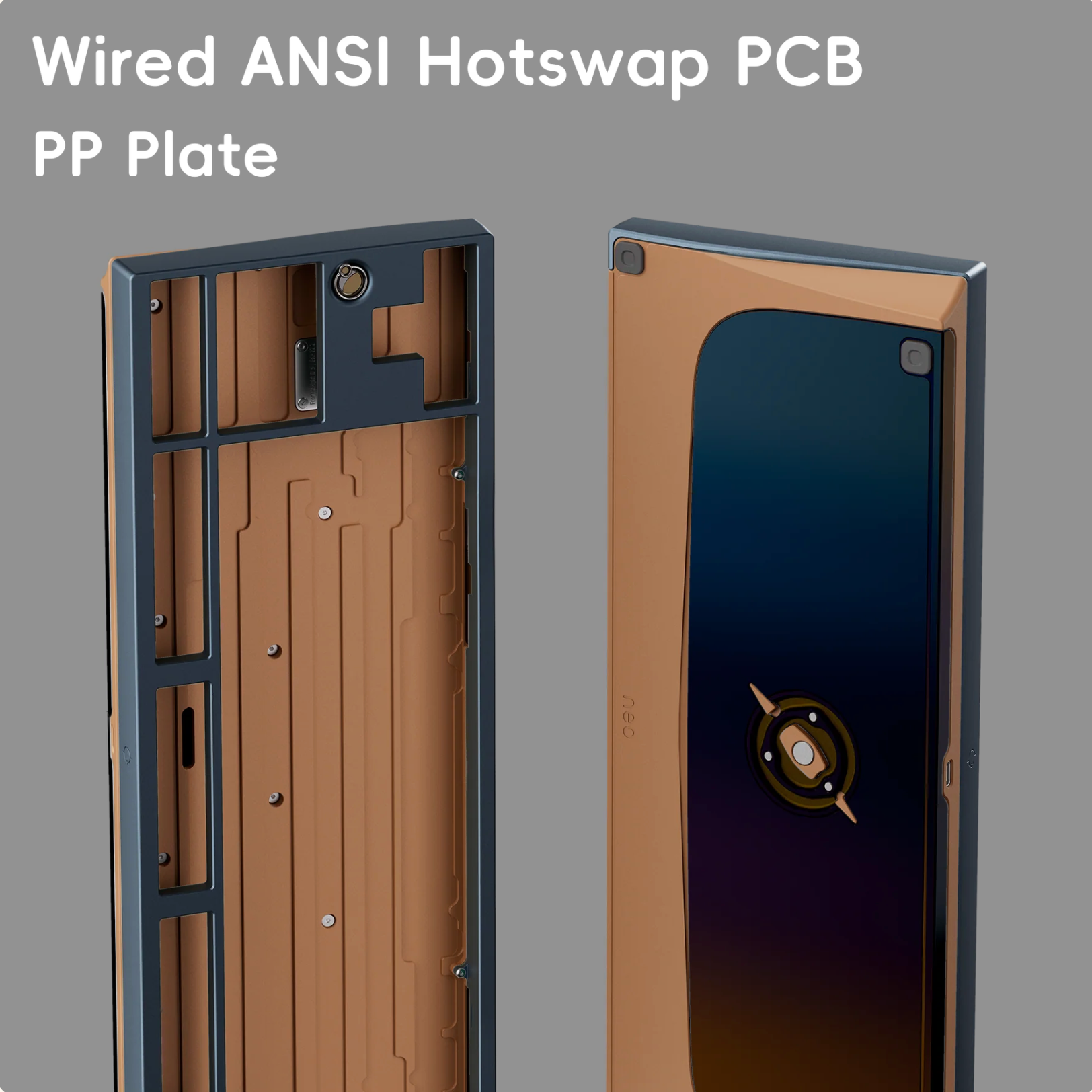

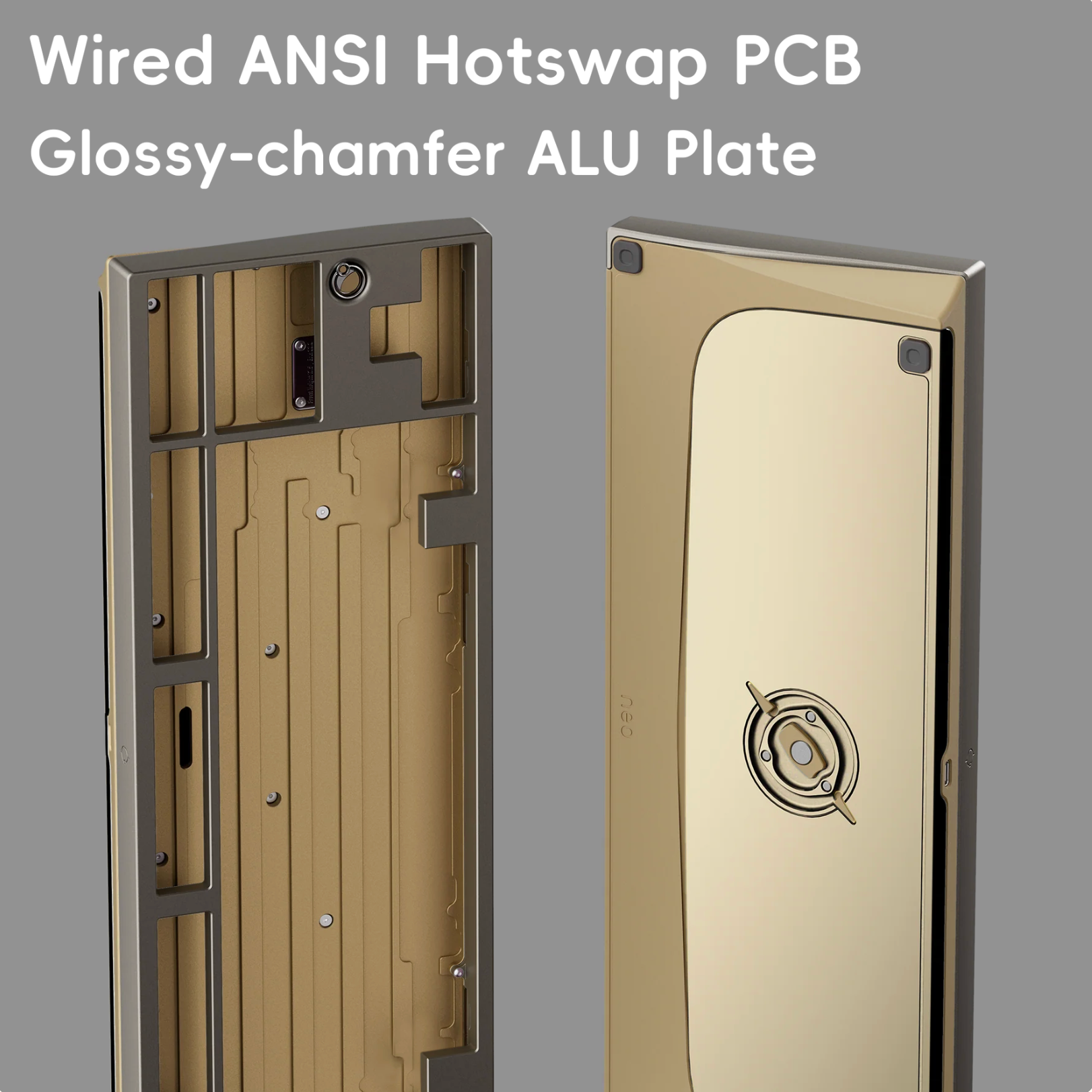

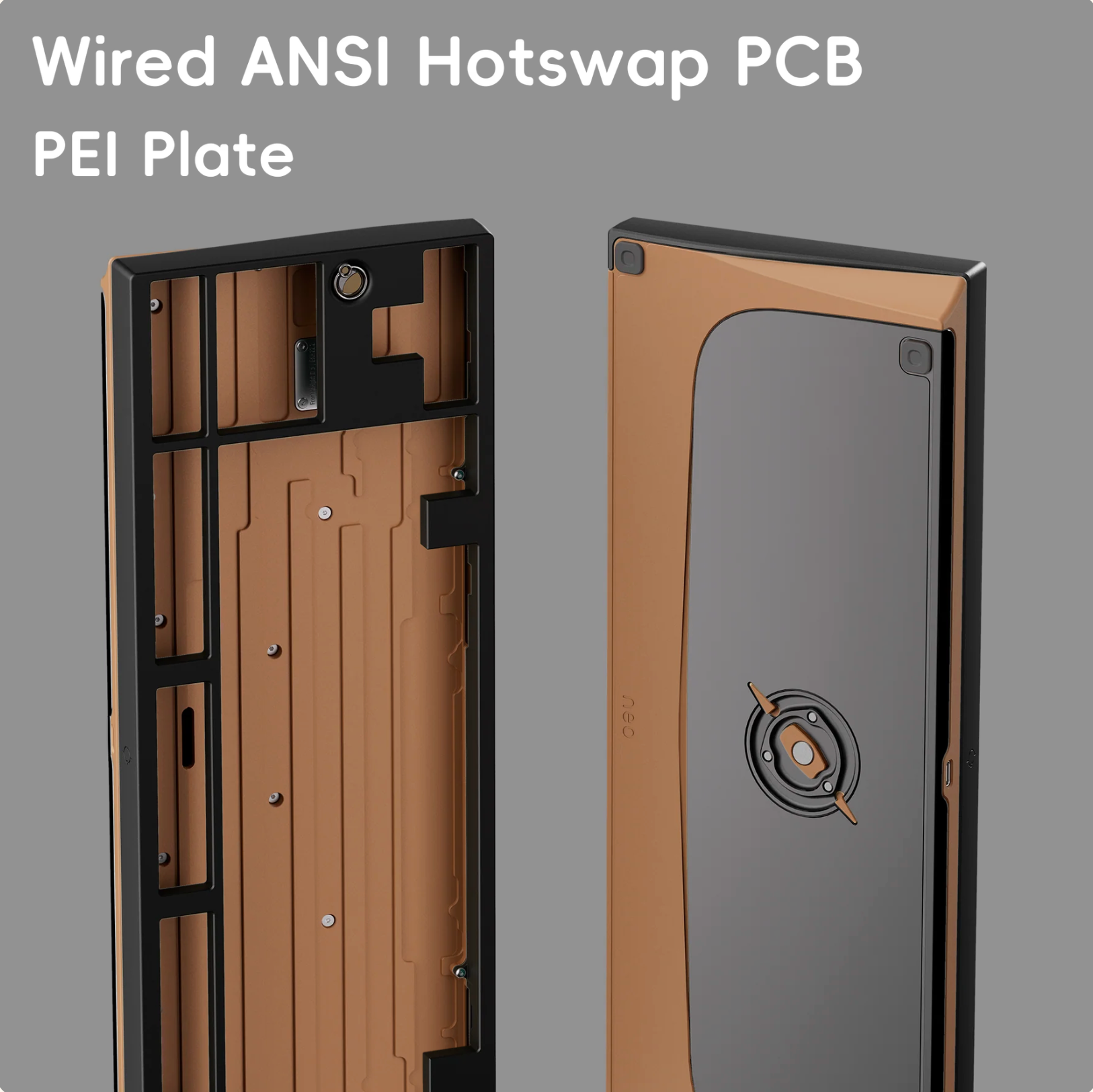

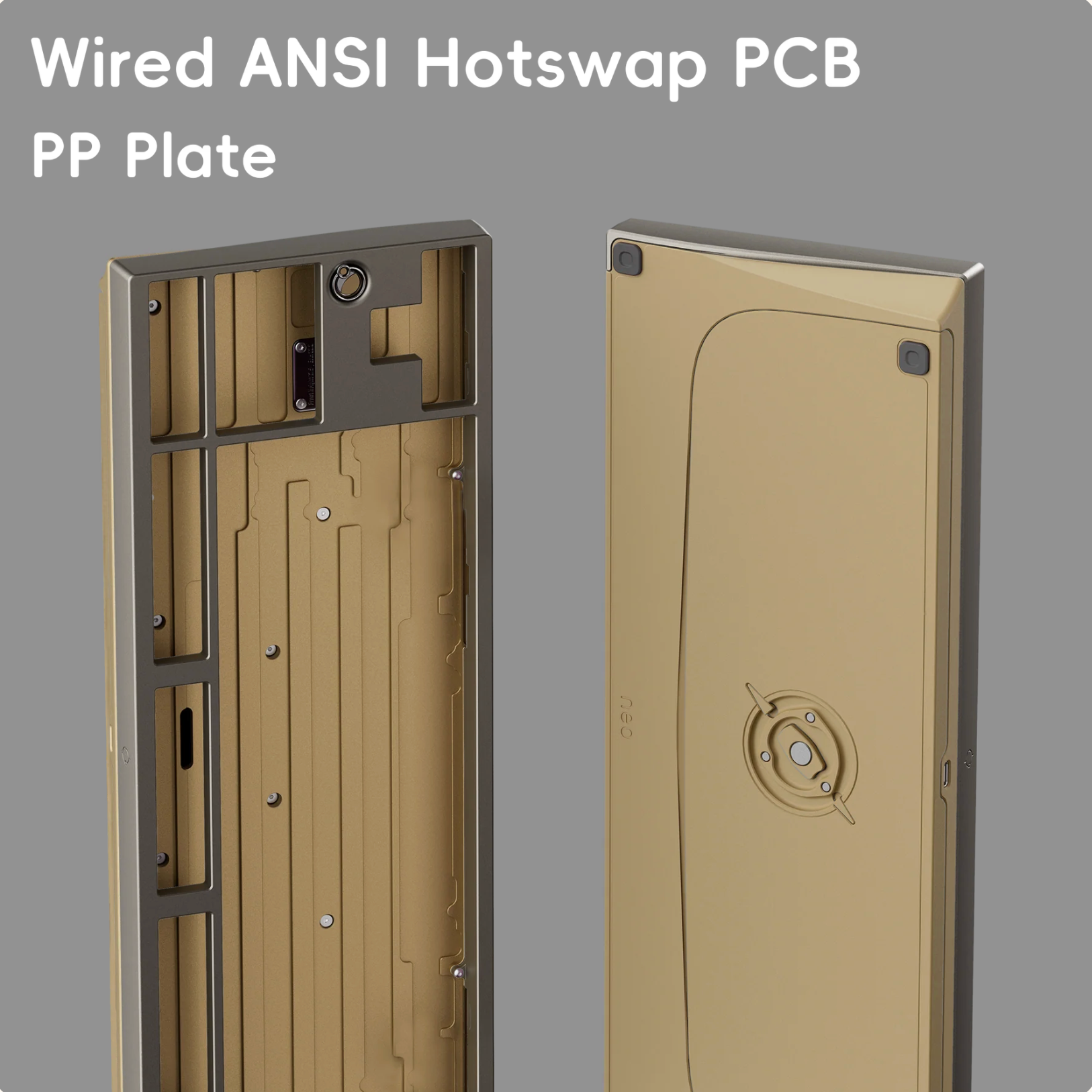

• Wired Hotswap PCB
  • 1.6mm thick, non-flex cut
  • USB-C connection only
  • Support both ANSI and ISO layout
  • NKRO
  • NO Per-key RGB
• Solder PCB
  • 1.6mm thick, non-flex cut
  • USB-C connection only
  • Support both ANSI and ISO layout
  • NKRO
  • NO Per-key RGB

Plate:

• Hard ———————————————> Soft:

  Carbon Fiber > Aluminum > FR4 > POM > PP

• Clack ———————————————> Thock:

  Carbon Fiber > Aluminum > FR4 > POM > PP

Content List:

• Keyboard Case
  • Includes one pre-installed weight of your choice
  • For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed in the battery compartment
  • For orders with wired PCBs, two stainless steel fillers come pre-installed in the battery compartment
  • For orders with solder PCBs, two foam fillers come pre-installed in the battery compartment. If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.
• PCB kit
  • PCB of your choice
  • 1x PE sheet
  • 1x PCB Foam
  • Tri-mode PCB comes with a 2.4Ghz dongle
• Plate of your choice
• Poron case foam
• PCB Daughterboard and magnetic connectors - installed
• Gaskets and O-ring (30 duro)
• Rubber feet in 2 colors
• Stand-offs and backup screws
• Plate fork (aka. the disassembly tool)
• Free Gifts: (Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced)
  • Keyboard carrying case
  • 1x Keycap & Switch puller
  • 1x Screwdriver
  • 1 Set of PCB clip-in NeoStab
  • USB-C cable

สินค้าที่จำหน่ายในร้าน ทาง Aiglatson Studio เป็นตัวแทนจำหน่ายอย่างเป็นทางการ จึงรับประกันได้ว่าสินค้าทุกชิ้นเป็นของแท้ และมีการรับประกันหากสินค้าเสียหายก่อนการใช้งาน
ราคาดังกล่าวรวมภาษีมูลค่าเพิ่ม (Vat 7%), ภาษีนำเข้าสินค้า และค่านำเข้าสินค้าเรียบร้อยแล้ว
ขอสงวนสิทธิ์ในการรับคืนสินค้า /คืนเงิน /เปลี่ยนสินค้าทุกกรณี ยกเว้นในกรณีที่สินค้ามีตำหนิ
