[GB] คีย์บอร์ด KBDfans Tofu TKL R2

Name: [GB] คีย์บอร์ด KBDfans Tofu TKL R2
Brand: KBDFans
Price: 1.00 THB
Availability: InStock

คลิกที่นี่ เพื่อดู Configurator

วิธีสั่งซื้อคีย์บอร์ด Tofu TKL R2
1. กรุณาเลือก Configuration ที่ต้องการจากลิงก์ด้านบน ราคาจะเป็นราคาไทย (THB)
2. เมื่อเลือกเสร็จทุกขั้นตอนแล้ว Copy Config Code จากหน้าสรุปออเดอร์ (ตัวอย่าง MMHQCLVXXX)
3. กรอกจำนวนเงินที่เลือกจาก Configurator ในช่อง Quantity ด้านล่าง (กรุณากรอกให้ตรงกับที่เลือก)
3. คลิก Add to cart
4. คลิก View cart
5. กรอก Config Code ที่ Copy ไว้ (จากข้อ 2) ในช่อง Order Note ก่อนชำระเงิน
6. ชำระเงินตามขั้นตอน

Quantity:

สินค้าชิ้นนี้เป็นสินค้า GB เปิด GB ตั้งแต่วันที่ 15 กรกฎาคม - 15 สิงหาคม 2569 กำหนดส่งสินค้าช่วงปลาย Q4 2569

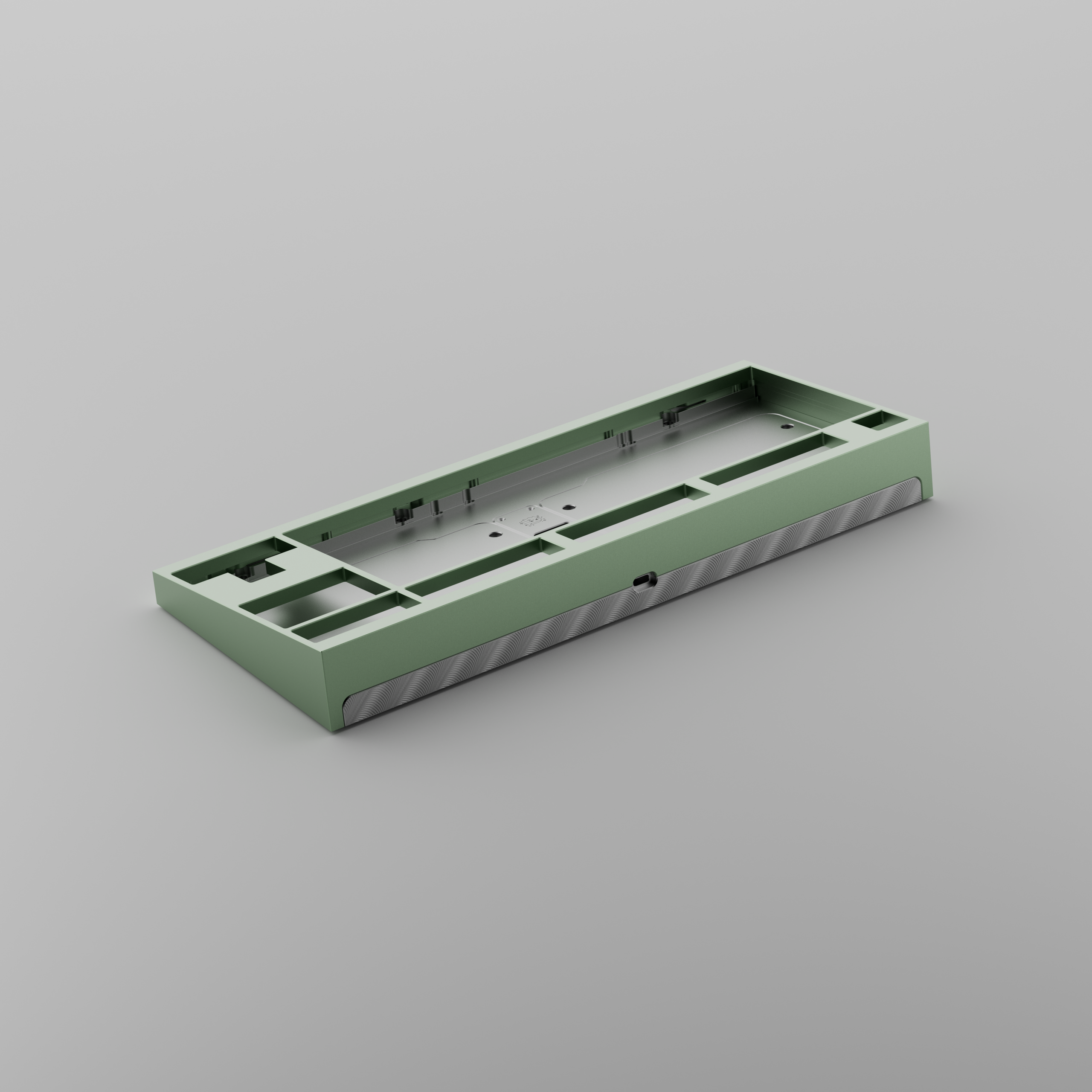

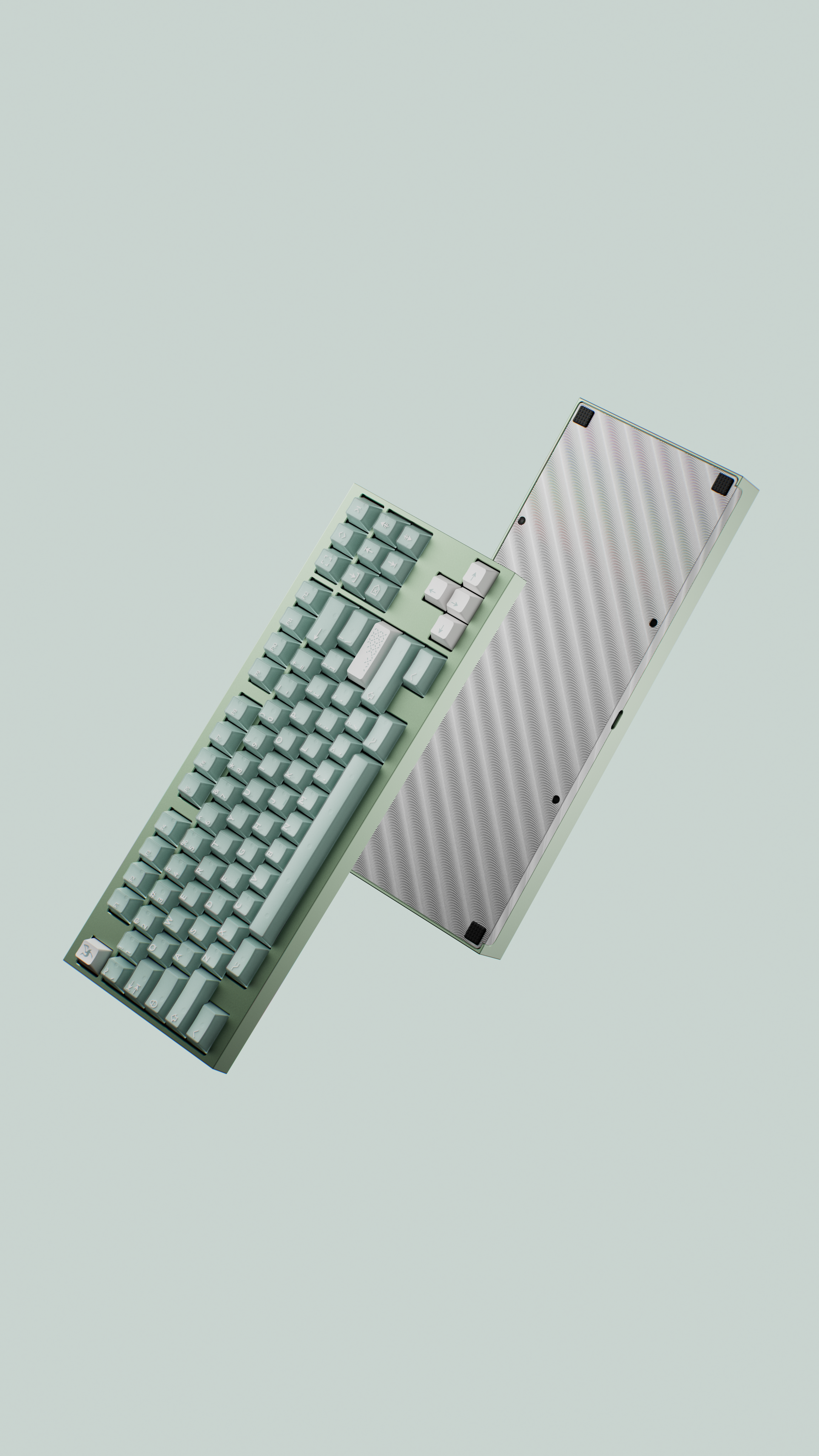

TOFU TKL R2

The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument.

As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own.

What's new in R2?

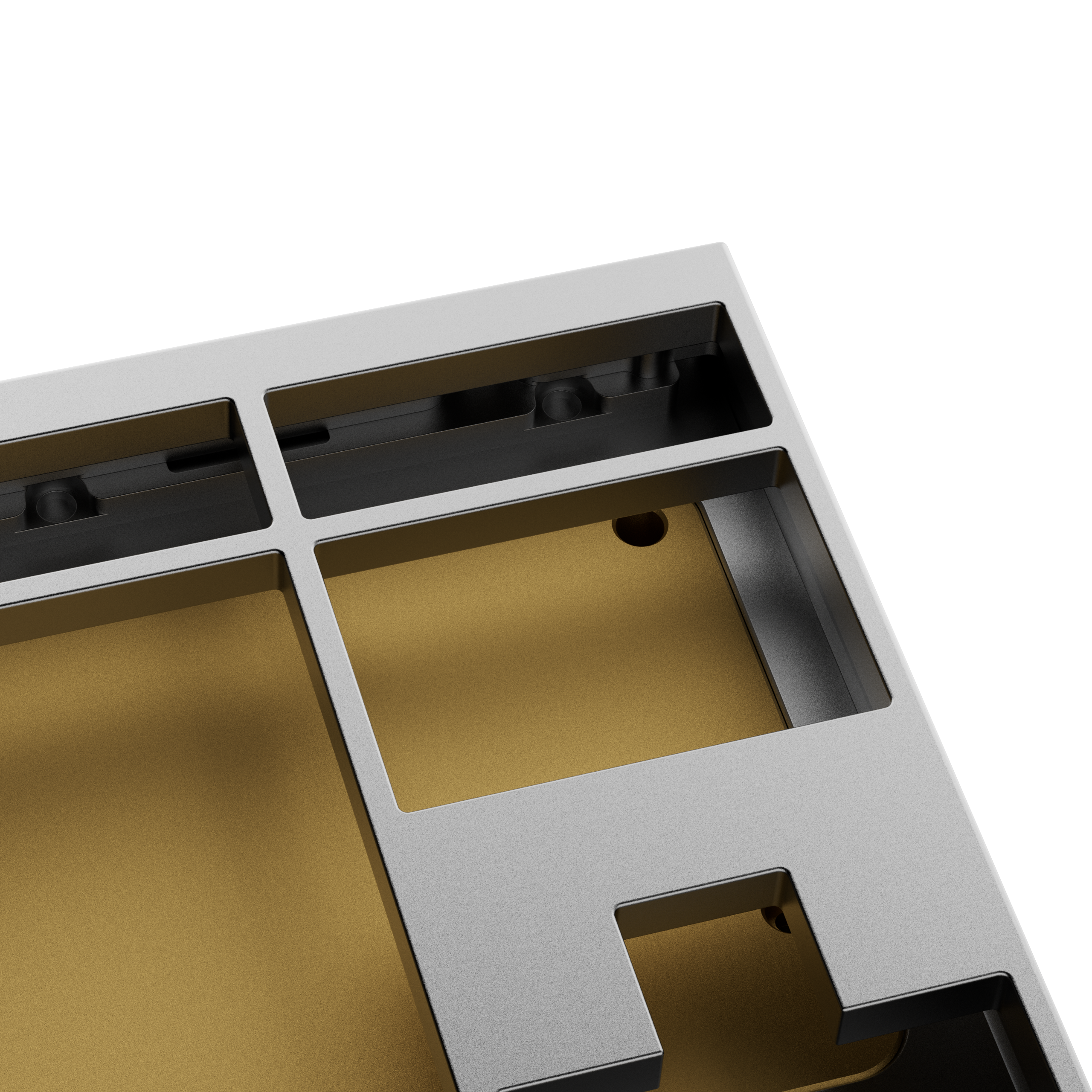

Top case outer profile: The outer corner radius (R-angle) of the top case has been increased from R0.5 to R1.
Top case inner bezel: The inner profile transition of the top case has been changed from a chamfer (C-angle) to a fillet (R-angle).

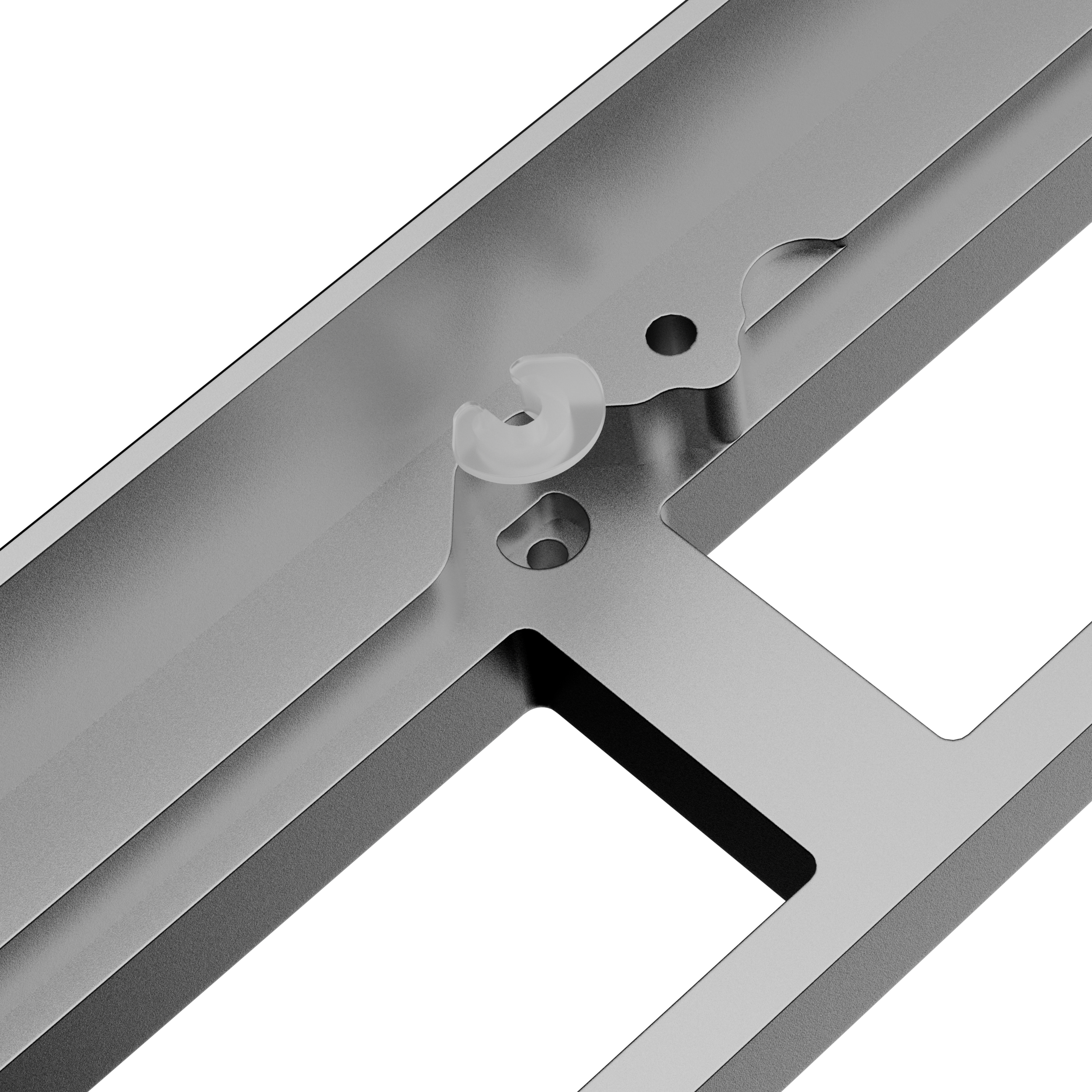

Silicone dampeners: The silicone dampeners are now inserted into the top case instead of the plate.

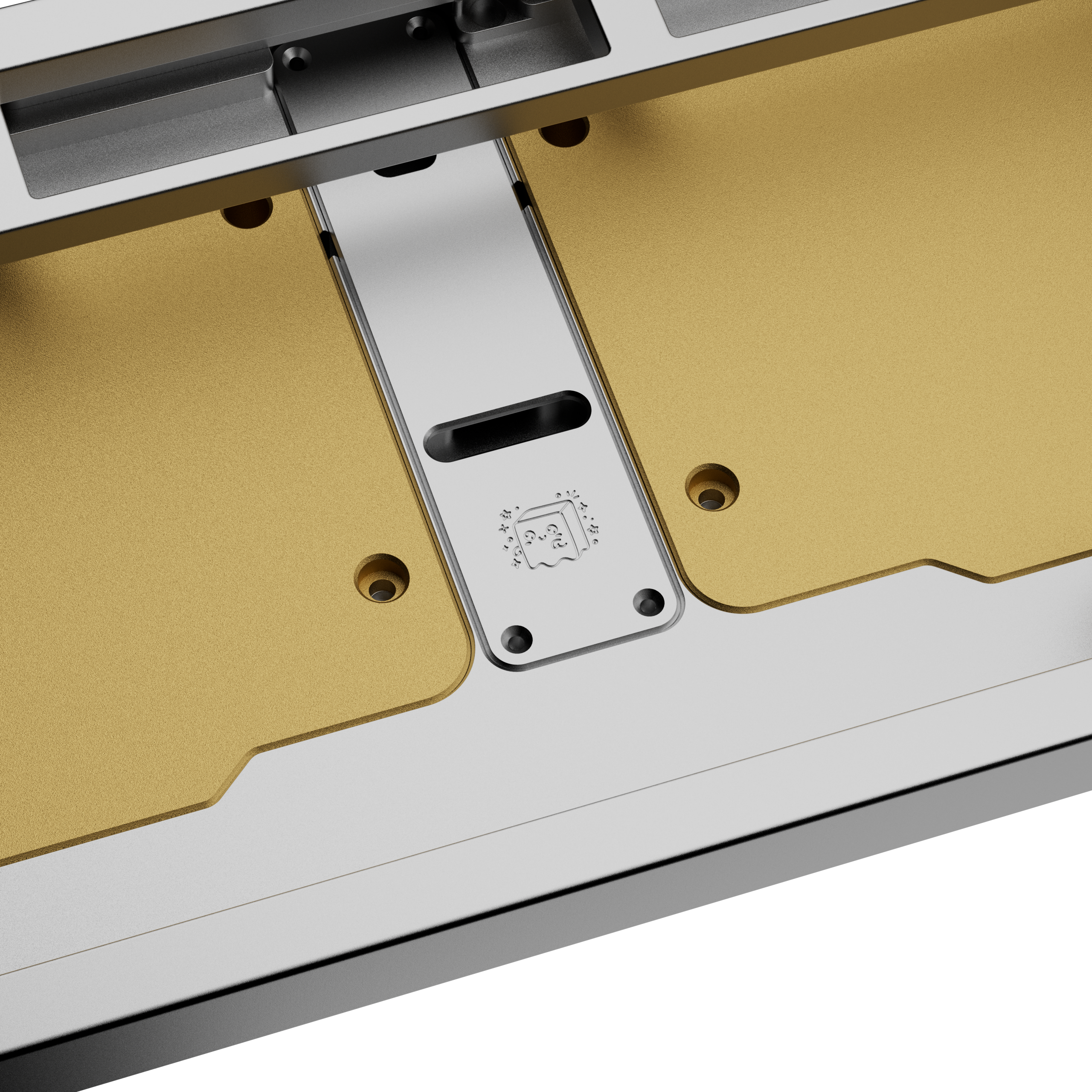

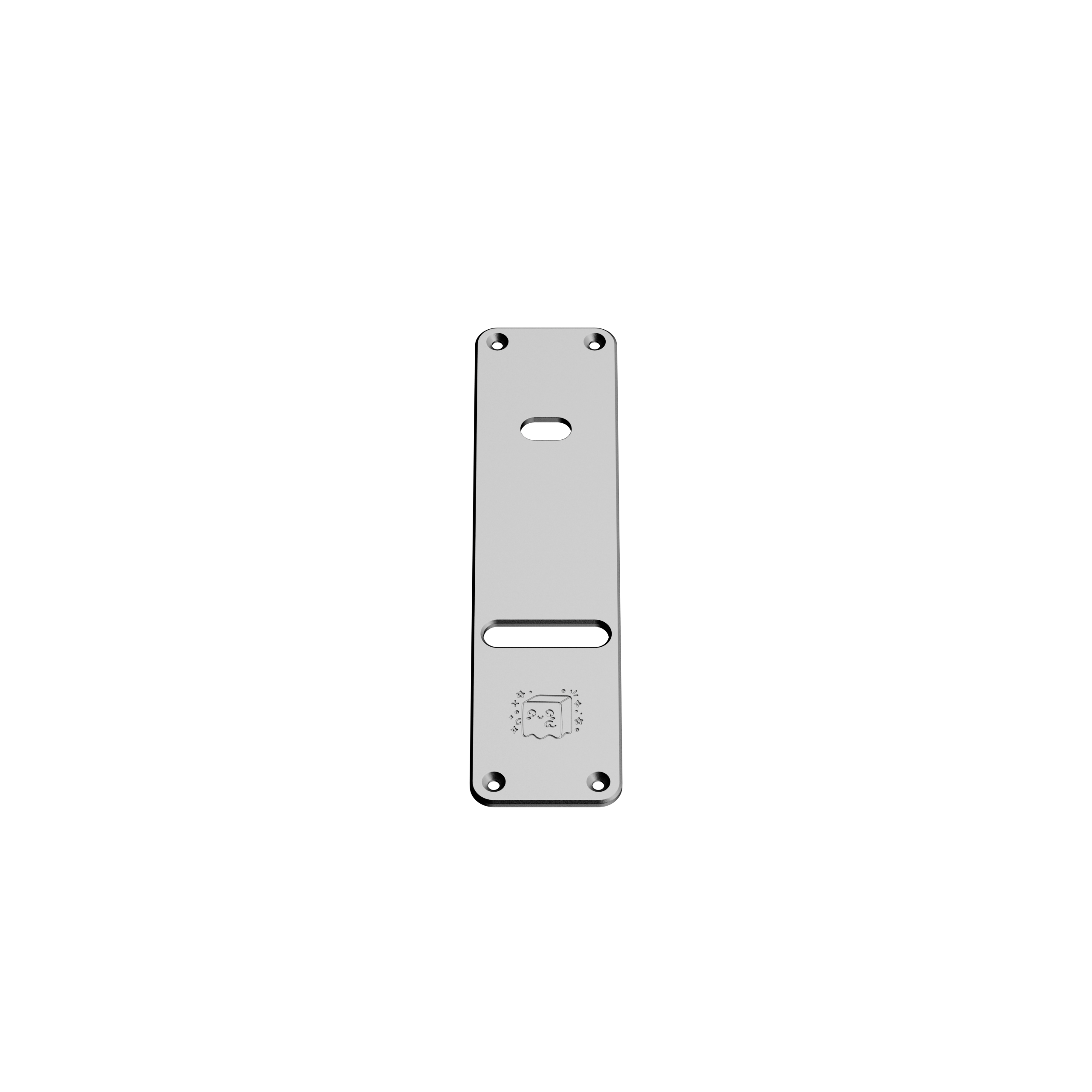

Daughterboard cover: The material has been changed from wood to anodized aluminum, featuring an engraved icon.

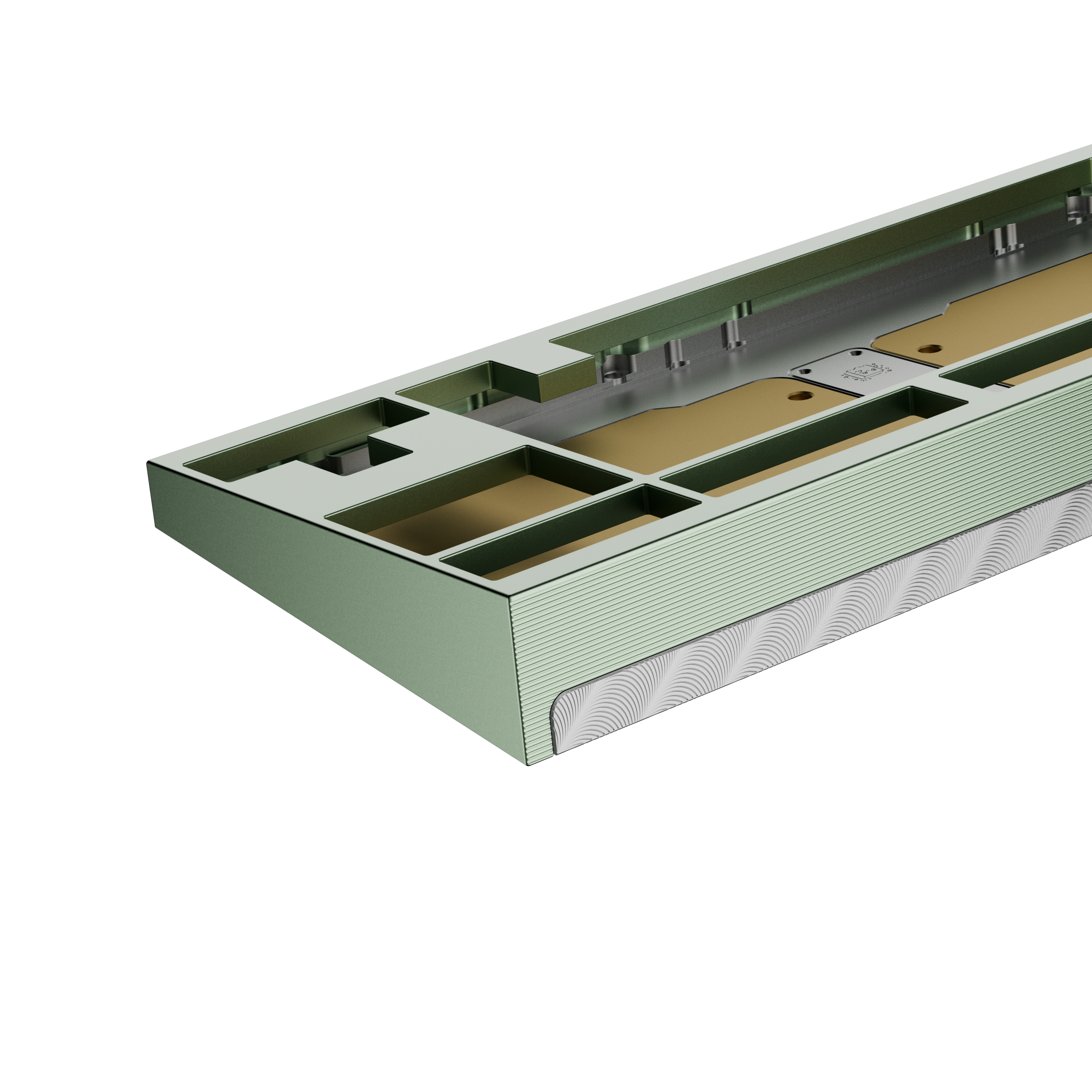

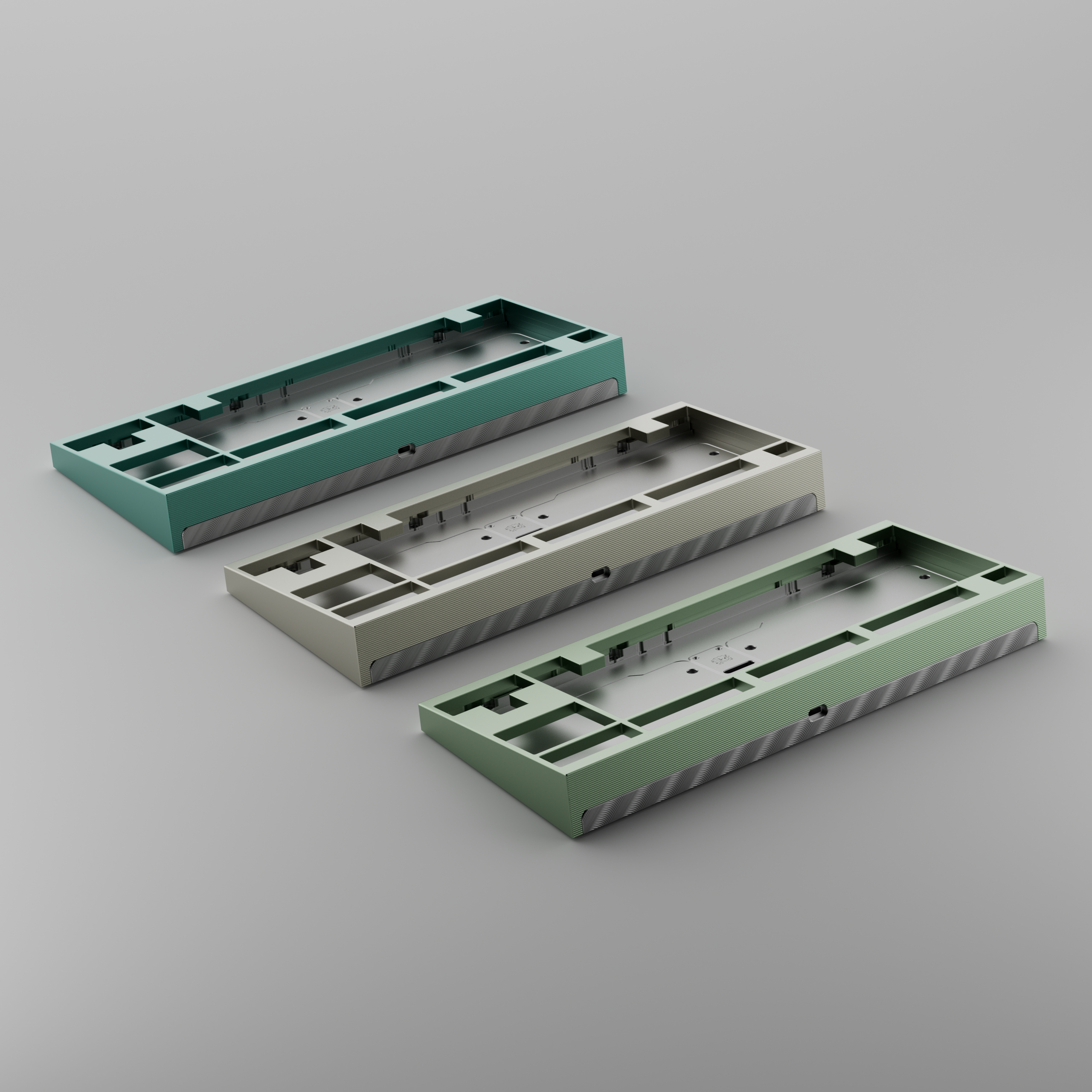

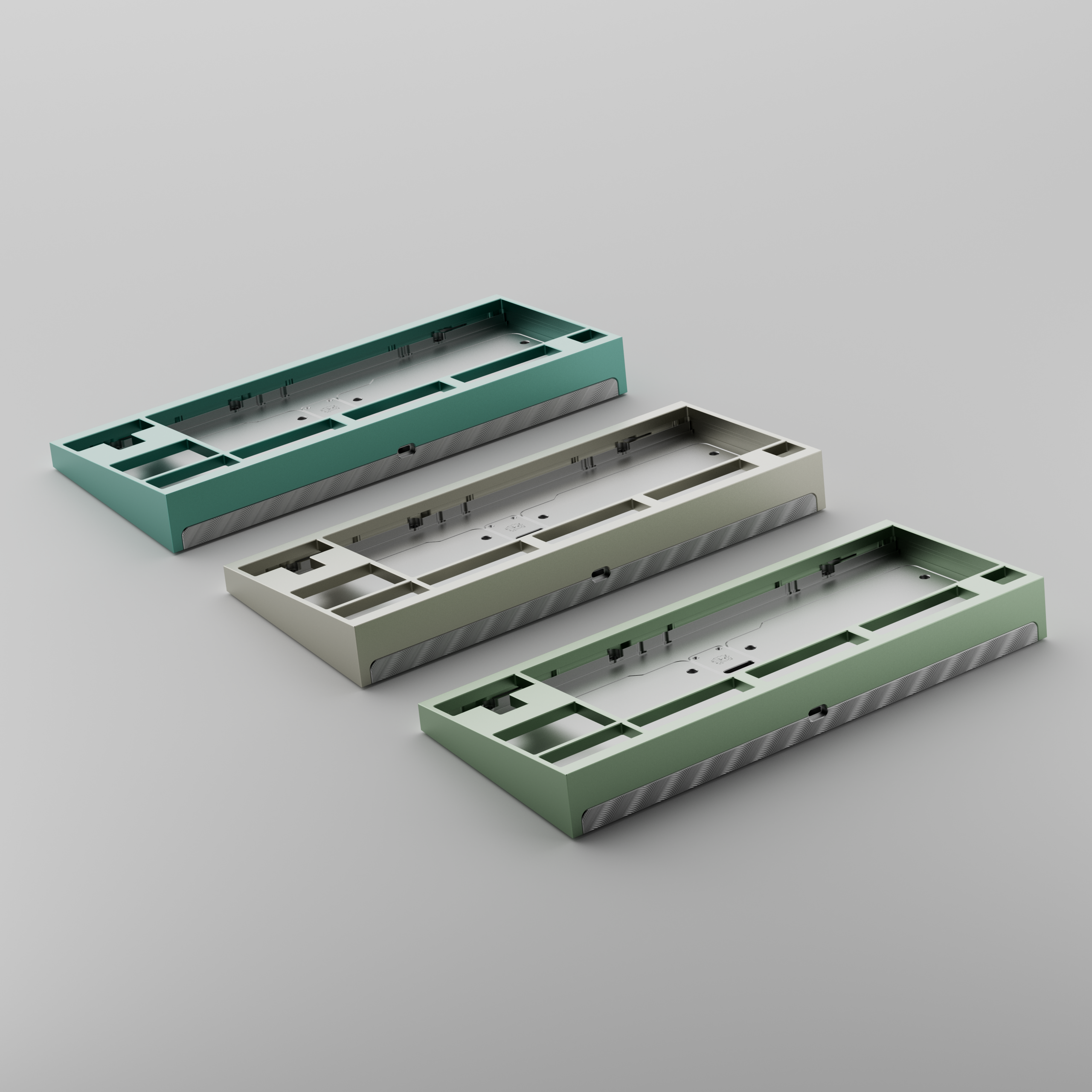

Exclusive colorways: The three limited-edition colors—Warm Silver with HTM(Horizontal Textured Mark), Celadon with HTM, and Muted Teal with HTM—now feature a horizontal textured finish.

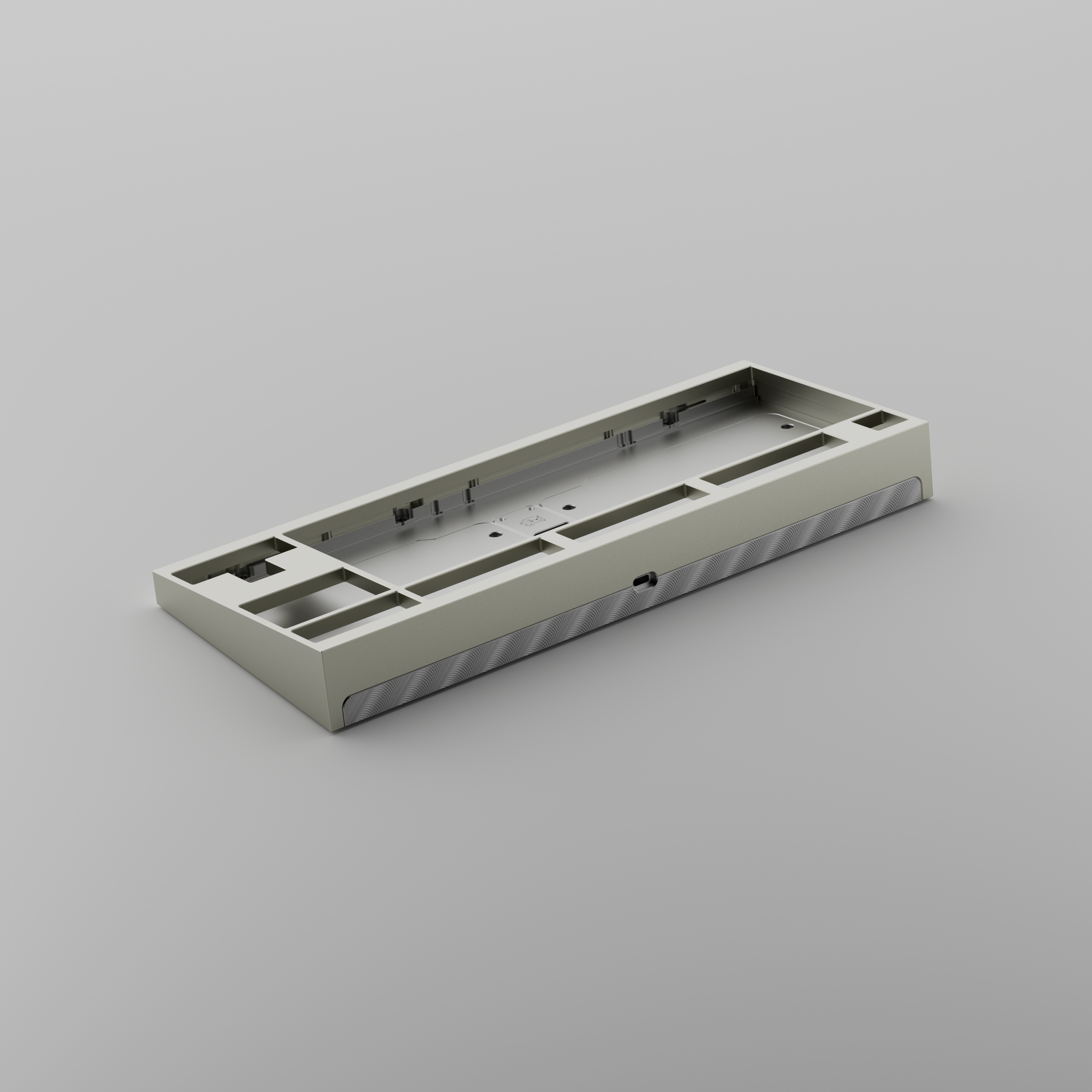

Case Design

Craftsmanship & Finish
Expertly crafted, the Tofu TKL case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.
Structural Integrity
Internally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.
Visual Language
Visually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.
Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specifications:

Case material: Aluminum/PC (anodized/e-coating)
Mounting style: Top Mount/PCB Silicone Gasket
PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
Plate: Alu/Carbon fiber/PC Plate/ FR4
Typing angle: 9 degree
Cover plate material options: Aluminum
Weight bar material: Alu Silver/ Copper/ Stainless Steel
Weight: up to 4.9kg after built
Designer: Wei
Plate file

Other information

Statement Regarding TOFU TKL Stonewashed Case

Please note that due to the nature of the stonewashing process, where metal interacts with stone, some abrasion on sharp corners may occur. This is a normal result of the manufacturing process. We strive to maintain strict quality control; however, it is impossible to completely prevent minor wear on sharp edges. We recommend handling the case with care and avoiding hard impacts to prolong its service life. We appreciate your support and understanding.

QC Standard

Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms.
Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
Standards for RAW Finish
The RAW version is anodized and uncoated. It preserves the original look of the machined metal, including natural tool marks.

Acceptable Quality Standards (Not covered by warranty):
1. Minor scratches, tool paths, and small speck-like imperfections.
2. Variations in surface reflection or slight dark spots on the raw metal.

(RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.)

What's included?

Top and bottom case x1
Optional weight bar x2
50A Silicone gasket x1 set
Silicone dampeners x1 set
Rubber feet x1 set
PCB x1
Daughterboard x1
Optional foam kit x1 set
Battery compartment foam kit x1 set
Optional plate x1
Carrying case x1
Cover plate x1
T6/T8 screw driver
Screw x1 set
Rubber feet x2 sets(Different hight)
Force break x1 set

Mounting Style

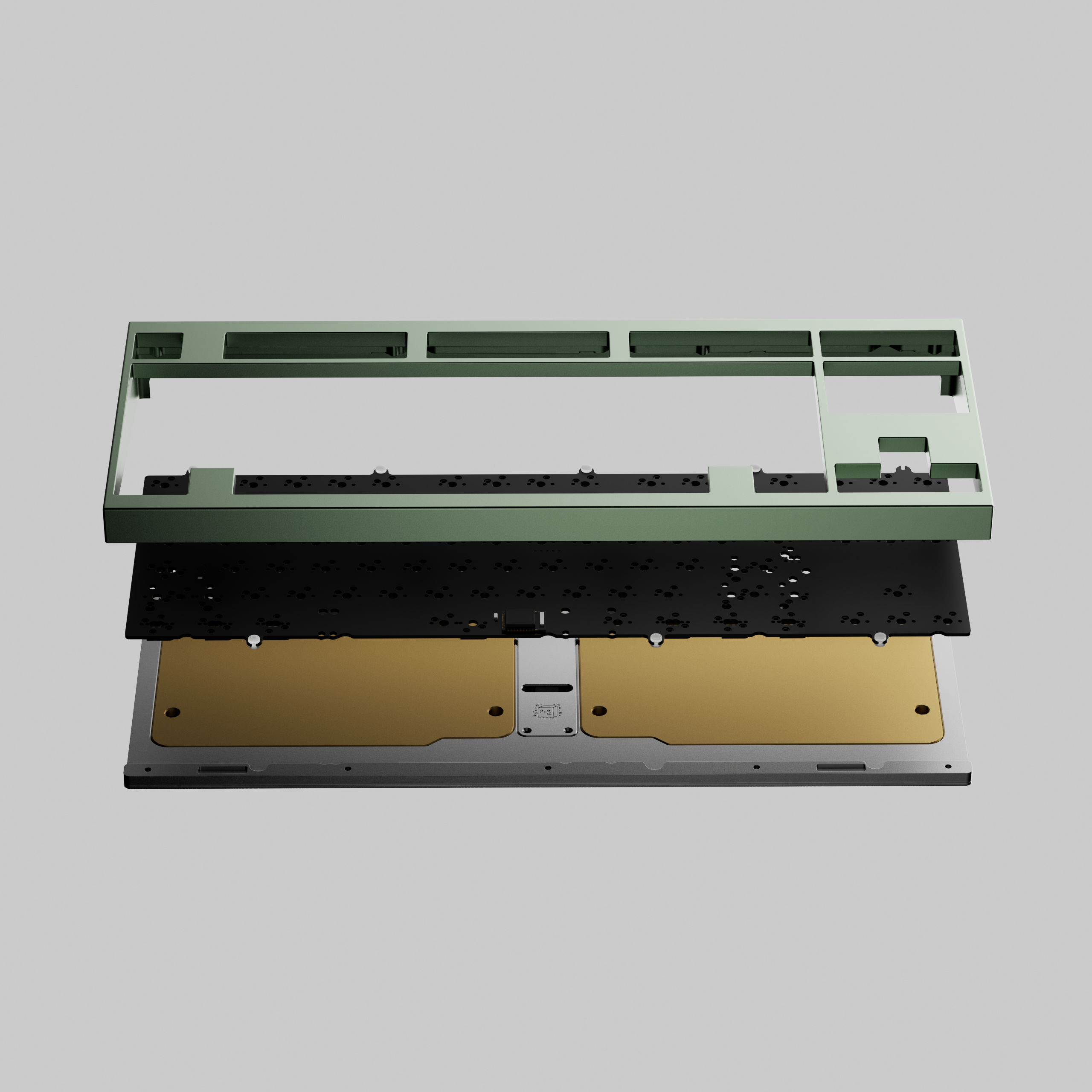

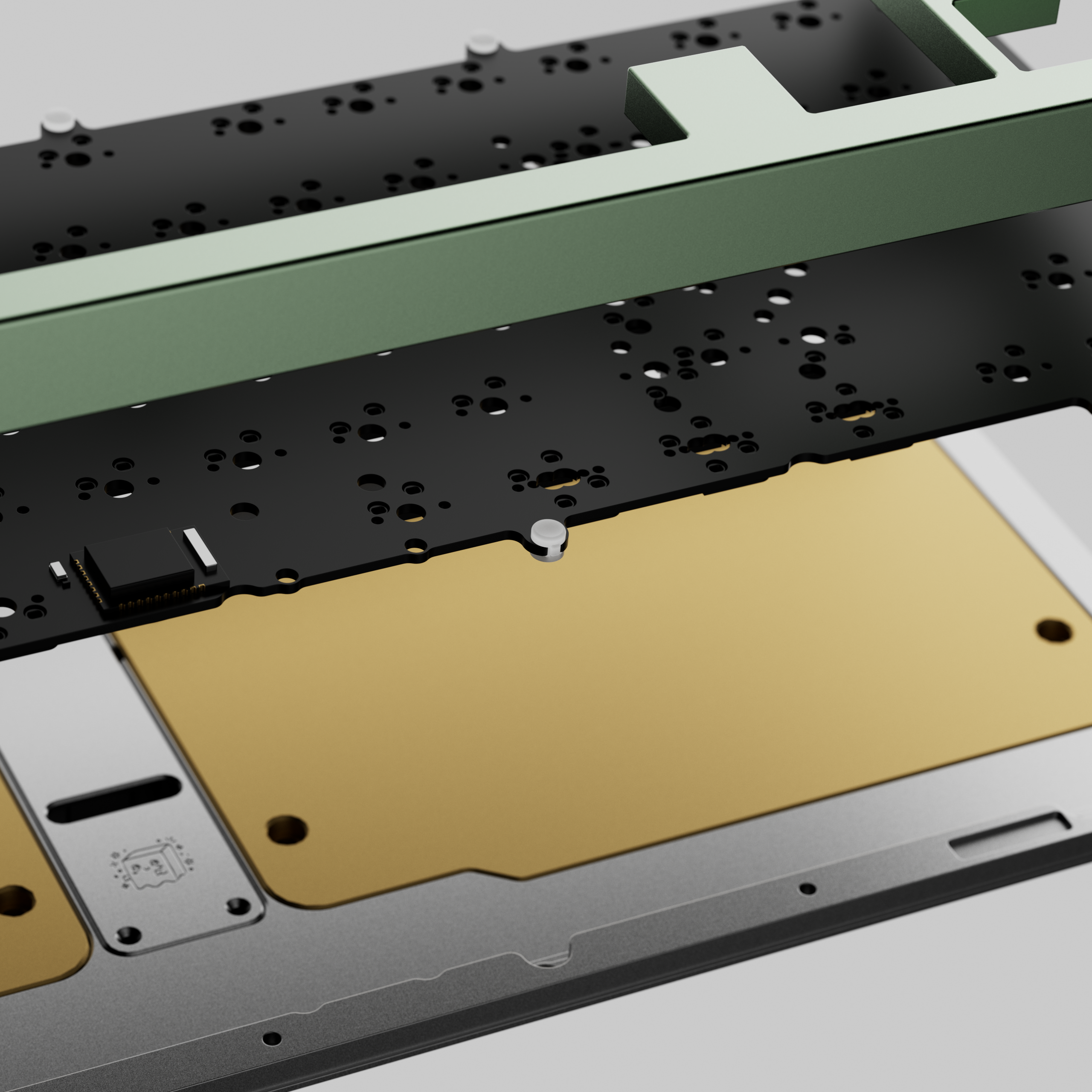

PCB Gasket mount

Engineered for Softness
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.
Plateless Build Potential
Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Top mount

Optimized TOP Mount Structure
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

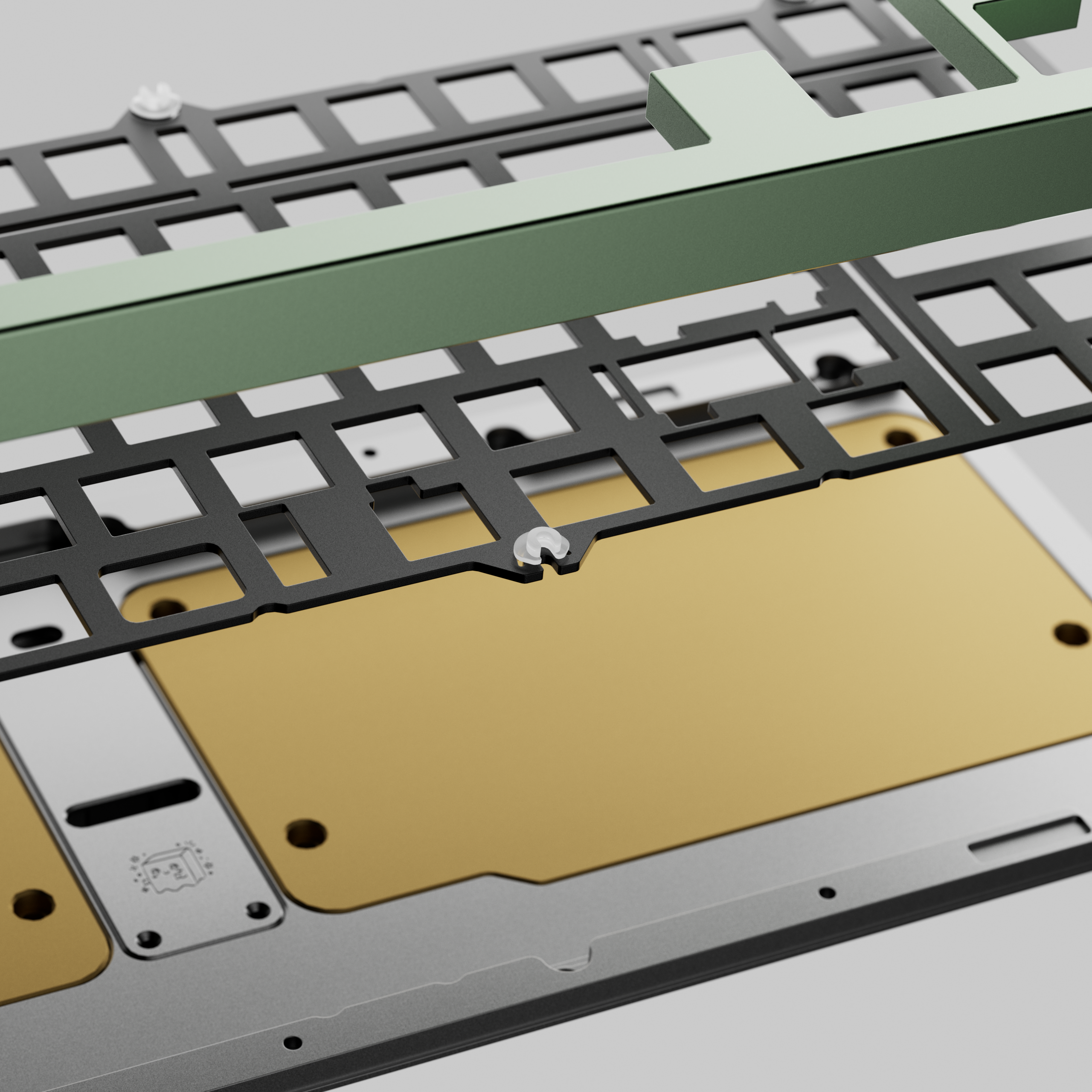

Plate-Mount Silicone Dampeners
Silicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise

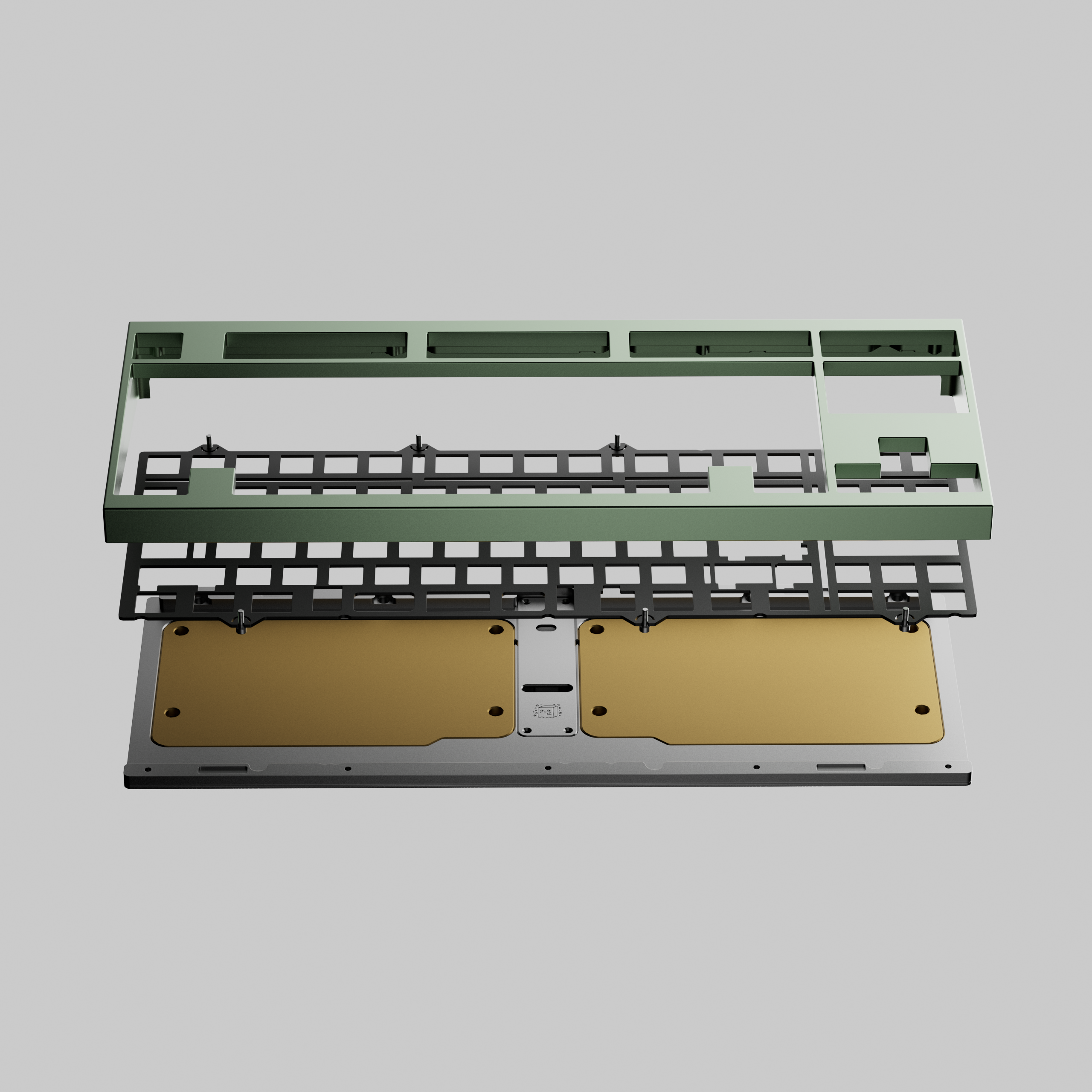

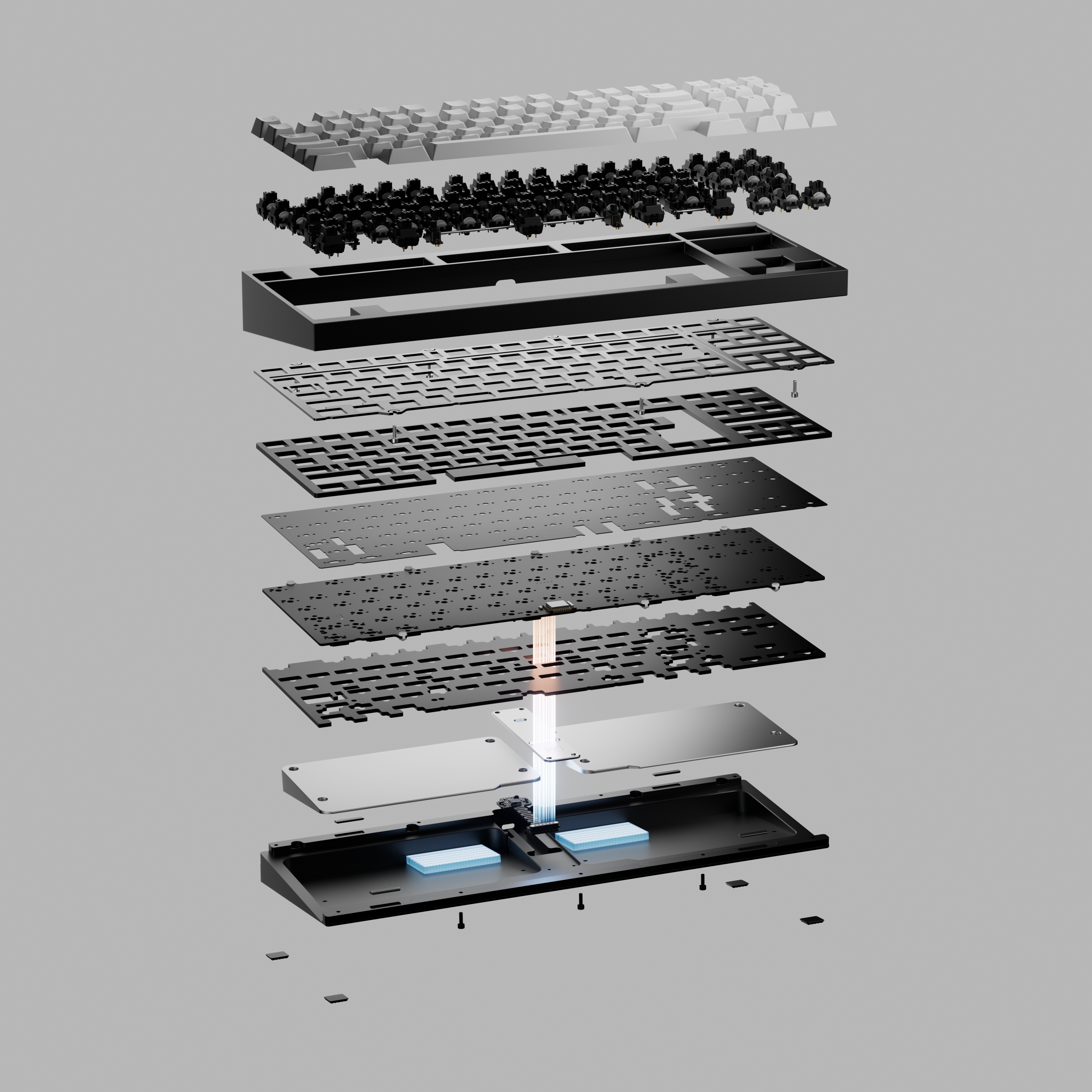

Exploded View

PCB Options

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

1.6mm thickness
FR4 material
Solder version/ Hotswap version
Magnetic connector PCB
Json file：ydkb_kbdfans_tofu_tkl_3_0_via.json （Updated on 08/06/2025）
Firmware: ydkb_kbdfans_tofu_tkl_3_0_vial.uf2 (Updated on 08/06/2025)

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.
